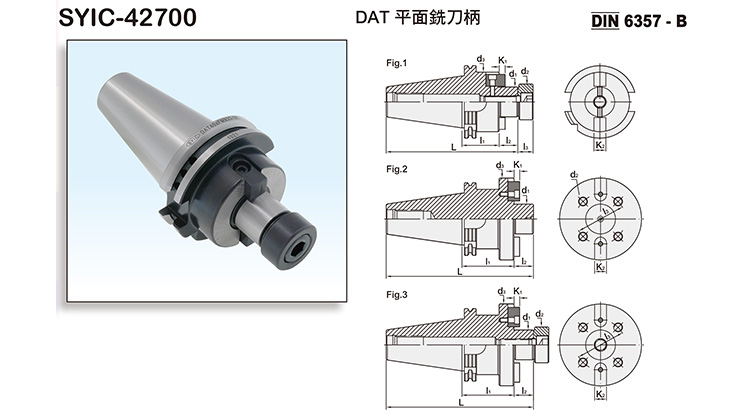

Product Name : DAT FACE MILL ARBOR TYPE FMB
Product Introduction
  • d1 tolerance: h6.
  • Tolerance of 7/24 taper: within AT3.
  • The pre-balance can reach G6.3 3,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1Ll2l3d2d3K1K2FigWEIGHT (KGS)
SYIC - 42701 DAT30 x FMB22 - 35 101.8 19 14 26 45 4.8 10 1 1
SYIC - 42703 DAT30 x FMB27 - 55 122.8 20 16 31.5 58 5.8 12 1 1.05
SYIC - 42711 DAT40 x FMB22 - 35 122.4 19 14 26 48 4.8 10 1 1.2
SYIC - 42713 DAT40 x FMB27 - 60 148.4 20 16 31.5 58 5.8 12 1 1.8
SYIC - 42715 DAT40 x FMB32 - 60 150.4 22 16 41 66 6.8 14 1 2
SYIC - 42717 DAT40 x FMB40 - 60 153.4 25 20.5 48 80 8.3 16 1 2.6
SYIC - 42721 DAT50 x FMB22 - 35 155.75 19 14 26 48 4.8 10 1 3.4
SYIC - 42723 DAT50 x FMB27 - 35 156.75 20 16 31.5 60 5.8 12 1 3.5
SYIC - 42725 DAT50 x FMB32 - 35 158.75 22 16 41 66 6.8 14 1 3.7
SYIC - 42727 DAT50 x FMB40 - 50 176.75 25 20.5 48 80 8.3 16 1 4.7
SYIC - 42729 DAT50 x FMB50 - 60 191.75 30 25 68 95 9.7 19 1 5.8
SYIC - 42761 DAT40 x FMB40F - 60 158.4 30 66.7 M12 89 8.3 16 2 2.9
SYIC - 42763 DAT50 x FMB40F - 70 201.75 30 66.7 M12 89 8.3 16 2 5.5
SYIC - 42765 DAT50 x FMB60F - 70 211.75 40 101.6 M16 129 12.5 25.4 2 5.7
SYIC - 42771 DAT40 x FS40 - 60 154.4 26 66.7 50 110 8.3 16 3 3.2
SYIC - 42773 DAT50 x FS40 - 70 197.75 26 66.7 50 110 8.3 16 3 5.7
SYIC - 42775 DAT50 x FS60 - 70 196.75 25 101.6 M16 140 12.5 25.4 2 5.5
