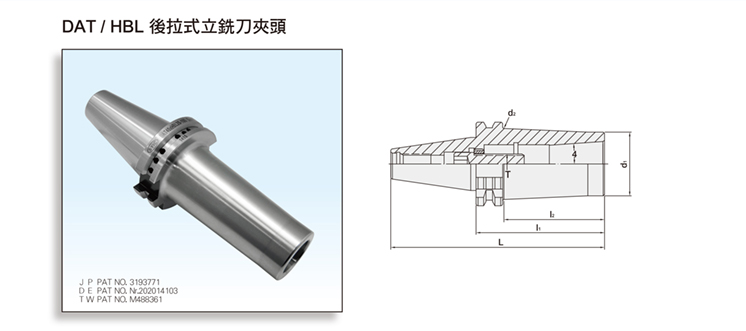

Product Name : DAT/HBL SLIM-FIT COLLET CHUCK
Product Introduction
  • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer request but the additional charge is needed.
MODEL NO.TYPE - I1LI2d1d2T
45356H DAT30 x HBL12 - 70 117.8 48.03 31.75 35.23 M10 x 1.5P
45358H DAT30 x HBL12 - 100 147.8 78.03 31.75 37.7 M10 x 1.5P
45362H DAT30 x HBL20 - 80 127.8 60.14 38.1 42.48 M12 x 1.75P
45364H DAT30 x HBL20 - 100 147.8 79.94 38.1 42.95 M12 x 1.75P
45372H DAT40 x HBL12 - 70 138.4 41.34 31.75 34.49 M10 x 1.5P
45374H DAT40 x HBL12 - 100 168.4 71.34 31.75 37.11 M10 x 1.5P
45376H DAT40 x HBL20 - 70 138.4 46.12 38.1 41.25 M12 x 1.75P
45378H DAT40 x HBL20 - 100 168.4 78.03 38.1 44.04 M12 x 1.75P
45379H DAT40 x HBL25 - 80 148.4 58.03 44.45 48.6 M16 x 2.0P
45379H-100 DAT40 x HBL25 - 100 168.4 80.1 44.45 49.5 M16 x 2.0P
45384H DAT50 x HBL12 - 70 171.75 41.34 31.75 34.49 M10 x 1.5P
45386H DAT50 x HBL12 - 100 201.75 71.34 31.75 37.11 M10 x 1.5P
45388H DAT50 x HBL20 - 70 171.75 41.34 38.1 40.84 M12 x 1.75P
45390H DAT50 x HBL20 - 100 201.75 71.34 38.1 43.47 M12 x 1.75P
45392H DAT50 x HBL25 - 70 171.75 46.1 44.45 47.6 M16 x 2.0P
45394H DAT50 x HBL25 - 100 201.75 76.1 44.45 50.2 M16 x 2.0P
