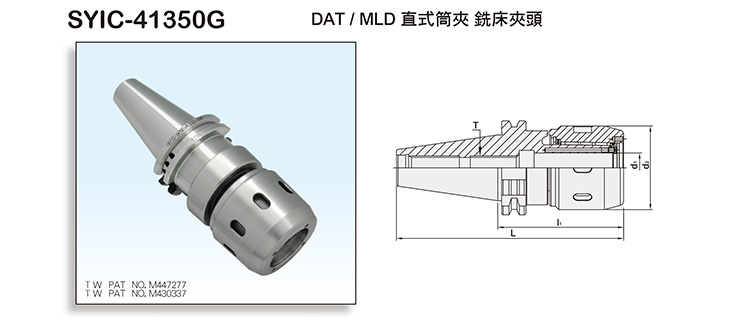

Product Name : DAT/MLD MULTI-LOCK MILLING CHUCK
Product Introduction
  • There is a special design for the slots of internal hole. It prevents the cutting tools from slipping and increases the clamping power.
  • The body of the tool holder is thick, so it has good clamping power. It adopts the needle bearing design to prevent the slipping. The operation is convenient and easy.
  • After locking the cutting tool (The tolerance of the cutting tool must be less than h6), it is more contacted with the flange while locking the clamping nut and tool holder. It can prevent the bearing cage from deformation easily. Also, rigidity and dust-proof function is improved.
  • High stability of the precision and easy for combination. There won’t be a situation of vibration during the high speed processing or big cutting depth.
  • Good clamping power. The clamping power of MLD32 type is around 1000 N-m.
  • Run-out: Within 0.001~0.005mm.
  • Concentricity: 0.02mm.
  • The pre-balance can reach G6.3 8,000RPM, with an inspection report. The balancing grade and revolution can be done according to customer's request but the additional charge is needed.

    • When using MLD sealed cap, the coolant fluid discharges from the cutting tool.It's good for heat dissipation and metal chips removal.

  • The design of coolant grooves improves the cooling and metal chips removal capability.



MODEL NO.TYPELl1d1d2TWEIGHT (KGS)
SYIC - 41350G DAT30 x MLD12 - 80 127.8 80 12 42 M12 x 1.75P 1.4
SYIC - 41351G DAT30 x MLD16 - 80 127.8 80 16 48 M12 x 1.75P 1.6
SYIC - 41352G DAT30 x MLD20 - 85 132.8 85 20 56.5 M16 x 2.0P 1.9
SYIC - 41354G DAT30 x MLD20 - 100 147.8 100 20 56.5 M16 x 2.0P 2.1
SYIC - 41353G DAT40 x MLD12 - 75 143.4 75 12 42 M12 x 1.75P 2.1
SYIC - 41355G DAT40 x MLD16 - 80 148.4 80 16 48 M12 x 1.75P 2.2
SYIC - 41356G DAT40 x MLD20 - 85 153.4 85 20 56.5 M16 x 2.0P 2.4
SYIC - 41358G DAT40 x MLD20 - 135 203.4 135 20 56.5 M16 x 2.0P 2.5
SYIC - 41362G DAT40 x MLD25 - 95 163.4 95 25 60 M16 x 2.0P 2
SYIC - 41364G DAT40 x MLD32 - 105 173.4 105 32 71 M16 x 2.0P 2.7
SYIC - 41366G DAT40 x MLD32 - 135 203.4 135 32 71 M16 x 2.0P 3
SYIC - 41367G DAT50 x MLD12 - 75 176.75 75 12 42 M12 x 1.75P 3.2
SYIC - 41372G DAT50 x MLD16 - 75 176.75 75 16 48 M12 x 1.75P 3.2
SYIC - 41368G DAT50 x MLD20 - 105 206.75 105 20 56.5 M16 x 2.0P 4.5
SYIC - 41370G DAT50 x MLD20 - 150 251.75 150 20 56.5 M16 x 2.0P 4.9
SYIC - 41374G DAT50 x MLD25 - 105 206.75 105 25 60 M16 x 2.0P 4.1
SYIC - 41376G DAT50 x MLD32 - 105 206.75 105 32 71 M24 x 3.0P 5.1
SYIC - 41378G DAT50 x MLD32 - 135 236.75 135 32 71 M16 x 2.0P 5.9
SYIC - 41380G DAT50 x MLD42 - 115 216.75 115 42 90 M24 x 3.0P 5
