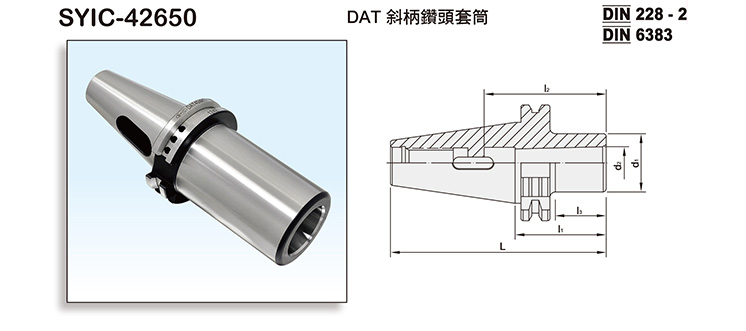

Product Name : DAT MORSE TAPER ADAPTER
Product Introduction
  • High accurate working process. Even though using prolonged drill, the concentricity is still within 0.015mm.



MODEL NO.TYPE - l1Ll2l3d1d2WEIGHT (KGS)
SYIC - 42651 DAT30 x MTA1 - 50 97.8 56 27 25 12.065 0.55
SYIC - 42653 DAT30 x MTA2 - 60 107.8 67 37 32 17.78 0.8
SYIC - 42655 DAT30 x MTA3 - 75 122.8 84 53 40 23.825 1
SYIC - 42661 DAT40 x MTA1 - 50 118.4 56 22 25 12.065 0.95
SYIC - 42663 DAT40 x MTA2 - 50 118.4 67 27 32 17.78 0.95
SYIC - 42665 DAT40 x MTA3 - 70 138.4 84 47 40 23.825 1.1
SYIC - 42667 DAT40 x MTA4 - 95 163.4 107 74 48 31.267 1.35
SYIC - 42671 DAT50 x MTA1 - 45 146.75 56 22 25 12.065 3
SYIC - 42673 DAT50 x MTA2 - 60 161.75 67 35 32 17.78 3.1
SYIC - 42675 DAT50 x MTA3 - 65 166.75 84 40 40 23.825 3.2
SYIC - 42677 DAT50 x MTA4 - 95 196.75 107 70 48 31.267 3.4
SYIC - 42679 DAT50 x MTA5 - 105 206.75 135 80 63 44.399 3.6
