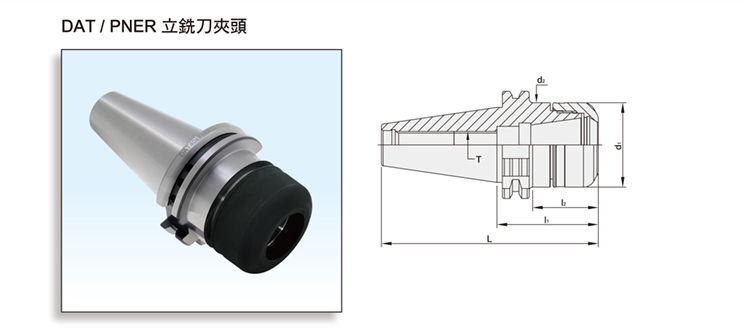

Product Name : DAT/PNER COLLET CHUCK
Product Introduction
MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
50.273.16.050 DAT30 x PNER16 - 50 97.8 27.9 30 30 M10 x 1.5P 3.0 ~ 10 0.7
50.273.16.100 DAT30 x PNER16 - 100 147.8 77.9 30 30 M10 x 1.5P 3.0 ~ 10 0.85
50.273.20.070 DAT30 x PNER20 - 70 117.8 47.9 32 32 M12 x 1.75P 3.0 ~ 13 0.8
50.273.25.070 DAT30 x PNER25 - 70 117.8 48.9 40 40 M16 x 2.0P 3.0 ~ 16 0.85
50.273.32.070 DAT30 x PNER32 - 70 117.8 50.4 50 50 M20 x 2.0P 3.0 ~ 20 0.9
51.273.16.070 DAT40 x PNER16 - 70 138.4 45.9 30 30 M10 x 1.5P 3.0 ~ 10 1.05
51.273.16.100 DAT40 x PNER16 - 100 168.4 75.9 30 30 M10 x 1.5P 3.0 ~ 10 1.15
51.273.20.070 DAT40 x PNER20 - 70 138.4 45.9 32 32 M12 x 1.75P 3.0 ~ 13 1.1
51.273.20.100 DAT40 x PNER20 - 100 168.4 75.9 32 32 M12 x 1.75P 3.0 ~ 13 1.3
51.273.25.070 DAT40 x PNER25 - 70 138.4 45.9 40 40 M16 x 2.0P 3.0 ~ 16 1.15
51.273.25.100 DAT40 x PNER25 - 100 168.4 75.9 40 40 M16 x 2.0P 3.0 ~ 16 1.45
51.273.32.050 DAT40 x PNER32 - 50 118.4 30.4 50 50 M16 x 2.0P 3.0 ~ 20 1.1
51.273.32.070 DAT40 x PNER32 - 70 138.4 50.4 50 50 M16 x 2.0P 3.0 ~ 20 1.22
51.273.32.100 DAT40 x PNER32 - 100 168.4 80.4 50 50 M16 x 2.0P 3.0 ~ 20 1.62
51.273.40.100 DAT40 x PNER40 - 100 168.4 80.4 63 63 M20 x 2.0P 6.0 ~ 26 1.65
52.273.16.070 DAT50 x PNER16 - 70 171.75 40.9 30 30 M10 x 1.5P 3.0 ~ 10 2.8
52.273.16.100 DAT50 x PNER16 - 100 201.75 70.9 30 30 M10 x 1.5P 3.0 ~ 10 3.2
52.273.16.160 DAT50 x PNER16 - 160 261.75 130.9 30 30 M10 x 1.5P 3.0 ~ 10 4.5
52.273.20.070 DAT50 x PNER20 - 70 171.75 40.9 32 32 M12 x 1.75P 3.0 ~ 13 3
52.273.20.100 DAT50 x PNER20 - 100 201.75 70.9 32 32 M12 x 1.75P 3.0 ~ 13 3.4
52.273.25.070 DAT50 x PNER25 - 70 171.75 40.9 40 40 M16 x 2.0P 3.0 ~ 16 3.4
52.273.25.100 DAT50 x PNER25 - 100 201.75 70.9 40 40 M16 x 2.0P 3.0 ~ 16 3.54
52.273.25.160 DAT50 x PNER25 - 160 261.75 130.9 40 40 M16 x 2.0P 3.0 ~ 16 4.6
52.273.32.070 DAT50 x PNER32 - 70 171.75 40.9 50 50 M16 x 2.0P 3.0 ~ 20 3.5
52.273.32.100 DAT50 x PNER32 - 100 201.75 70.9 50 50 M16 x 2.0P 3.0 ~ 20 4.3
52.273.40.070 DAT50 x PNER40 - 70 171.75 45.9 63 63 M20 x 2.0P 6.0 ~ 26 3.5
52.273.40.100 DAT50 x PNER40 - 100 201.75 75.9 63 63 M20 x 2.0P 6.0 ~ 26 4.3
