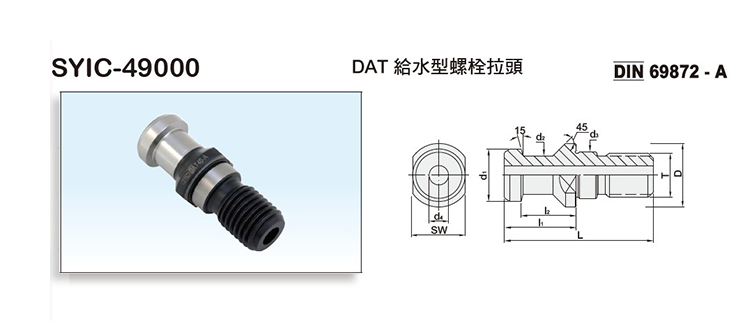

Product Name : DAT Pull Studs Coolant Type
Product Introduction
  • Please make sure the pull stud conforms to the machine type.
MODEL NO.TYPEDd1d2d3d4Ll1l2SWTWEIGHT (KGS)
SYIC - 49001 DAT30 - A 17 13 9 13 - 44 24 19 14 M12 0.03
SYIC - 49003 DAT40 - A 23 19 14 17 7 54 26 20 19 M16 0.09
SYIC - 49005 DAT50 - A 36 28 21 25 11.5 74 34 25 30 M24 0.25
