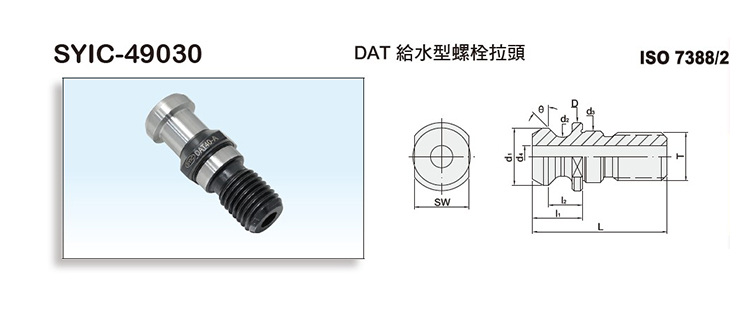

Product Name : DAT Pull Studs Coolant Type
Product Introduction
  • Please make sure the pull stud conforms to the machine type.
MODEL NO.TYPEDd1d2d3d4Ll1l2θSWTWEIGHT (KGS)
SYIC - 49032 DAT40 - A 23 19 14 17 7 54 26 20 15° 19 M16 0.09
SYIC - 49034 DAT50 - A 36 28 21 25 11.5 74 34 25 15° 30 M24 0.25
SYIC - 49036 DAT40 - B 22.5 18.95 12.95 17 7.35 44.5 16.4 11.15 45° 18 M16 0.03
SYIC - 49038 DAT50 - B 37 29.1 19.6 25 11.55 65.5 25.55 17.95 45° 30 M24 0.1
