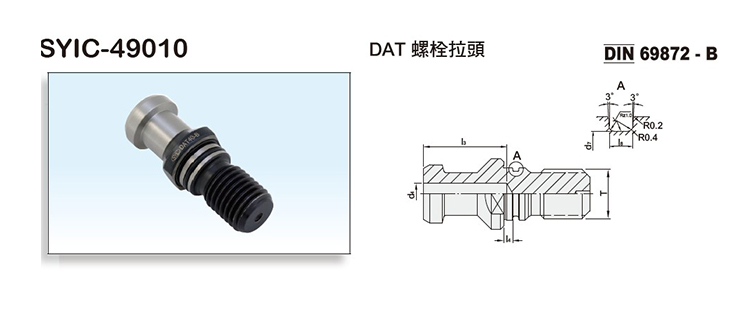

Product Name : DAT Pull Studs
Product Introduction
  • Please make sure the pull stud conforms to the machine type.
MODEL NO.TYPEDd1d2d3d4Ll1l2l3l4SWTWEIGHT (KGS)
SYIC - 49011 DAT30 - B 17 13 9 13 - 44 24 19 - 2.3 14 M12 0.03
SYIC - 49013 DAT40 - B 23 19 14 17 7 54 26 20 27 3 19 M16 0.09
SYIC - 49015 DAT50 - B 36 28 21 25 11.5 74 34 25 37 4.5 30 M24 0.25
