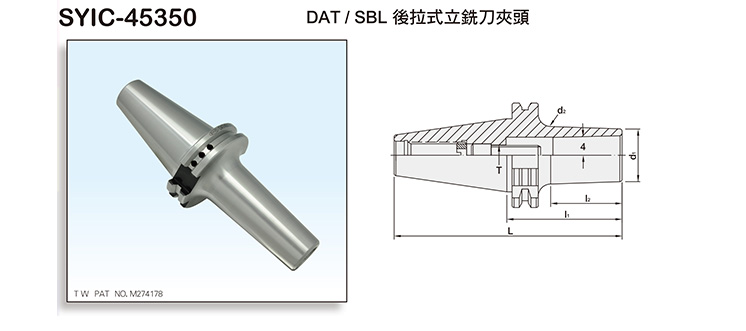

Product Name : DAT/SBL SLIM-FIT COLLET CHUCK
Product Introduction
  • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



TYPETTORQUE
N.m1bf-ft
SBL6 M6 x 1.0P 12 9
SBL12 M10 x 1.5P 59 43
SBL20 M12 x 1.75P 100 74
MODEL NO.TYPE - I1LI2d1d2TSIZE RANGEWEIGHT (KGS)
SYIC - 45352 DAT30 x SBL6 - 70 117.8 41 14 18 M6 x 1.0P 3.0 ~ 6.0 0.39
SYIC - 45354 DAT30 x SBL6 - 100 147.8 71 14 21 M6 x 1.0P 3.0 ~ 6.0 0.4
SYIC - 45356 DAT30 x SBL12 - 70 117.8 48 26 31 M10 x 1.5P 3.0 ~ 12 0.42
SYIC - 45358 DAT30 x SBL12 - 100 147.8 78 26 34 M10 x 1.5P 3.0 ~ 12 0.43
SYIC - 45362 DAT30 x SBL20 - 80 127.8 58 34 38 M12 x 1.75P 3.0 ~ 20 0.44
SYIC - 45364 DAT30 x SBL20 - 100 147.8 79 34 39 M12 x 1.75P 3.0 ~ 20 0.45
SYIC - 45368 DAT40 x SBL6 - 70 138.4 36 14 17 M6 x 1.0P 3.0 ~ 6.0 1
SYIC - 45370 DAT40 x SBL6 - 100 168.4 58 14 20 M6 x 1.0P 3.0 ~ 6.0 1.1
SYIC - 45372 DAT40 x SBL12 - 70 138.4 41 26 29 M10 x 1.5P 3.0 ~ 12 1.2
SYIC - 45374 DAT40 x SBL12 - 100 168.4 71 26 32 M10 x 1.5P 3.0 ~ 12 1.3
SYIC - 45374-170 DAT40 x SBL12 - 170 238.4 146 26 38 M10 x 1.5P 3.0 ~ 12 2
SYIC - 45376 DAT40 x SBL20 - 70 138.4 41 35 38 M12 x 1.75P 3.0 ~ 20 1.3
SYIC - 45378 DAT40 x SBL20 - 100 168.4 78 35 41 M12 x 1.75P 3.0 ~ 20 1.4
SYIC - 45379 DAT40 x SBL25 - 80 148.4 58 40 45 M16 x 2.0P 3.0 ~ 25 1.5
SYIC - 45379-100 DAT40 x SBL25 - 100 168.4 79 40 46 M16 x 2.0P 3.0 ~ 25 1.6
SYIC - 45380 DAT50 x SBL6 - 70 171.75 36 14 17 M6 x 1.0P 3.0 ~ 6.0 2.8
SYIC - 45382 DAT50 x SBL6 - 100 201.75 66 14 20 M6 x 1.0P 3.0 ~ 6.0 2.9
SYIC - 45384 DAT50 x SBL12 - 70 171.75 41 26 29 M10 x 1.5P 3.0 ~ 12 3
SYIC - 45386 DAT50 x SBL12 - 100 201.75 71 26 32 M10 x 1.5P 3.0 ~ 12 3.1
SYIC - 45388 DAT50 x SBL20 - 70 171.75 41 35 38 M12 x 1.75P 3.0 ~ 20 3.2
SYIC - 45390 DAT50 x SBL20 - 100 201.75 71 35 41 M12 x 1.75P 3.0 ~ 20 3.3
SYIC - 45391 DAT50 x SBL20 - 170 271.75 139 40 47 M12 x 1.75P 3.0 ~ 20 3.9
SYIC - 45392 DAT50 x SBL25 - 70 171.75 39 40 43 M16 x 2.0P 3.0 ~ 25 3.2
SYIC - 45394 DAT50 x SBL25 - 100 201.75 71 40 46 M16 x 2.0P 3.0 ~ 25 3.4
