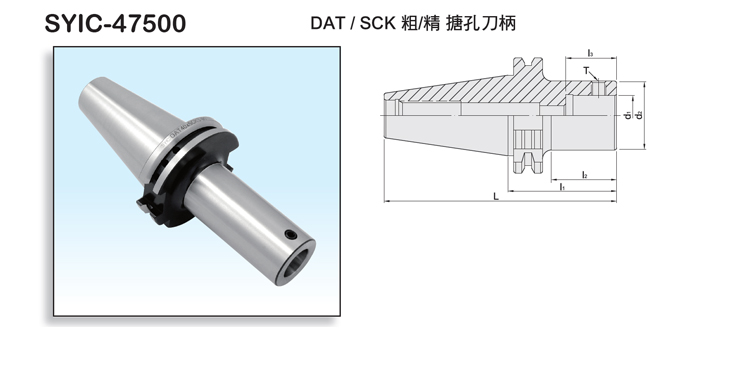

Product Name : DAT/SCK Boring Head Shank
Product Introduction
  • Internal hole tolerance: H6.
  • For center coolant (DIN 69871-AD).
  • The pre-balance can reach G6.3 5,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - I1LI2I3d1d2TWEIGHT (KGS)
SYIC - 47502 DAT30 x SCK1 - 50 97.8 27.9 15 11 19 M4 x 0.7P 0.6
SYIC - 47504 DAT30 x SCK2 - 65 112.8 42.9 18.5 14 23.5 M5 x 0.8P 0.7
SYIC - 47506 DAT30 x SCK3 - 50 97.8 27.9 22 18 31 M6 x 1.0P 0.8
SYIC - 47508 DAT30 x SCK4 - 50 97.8 27.9 28 22 39 M8 x 1.25P 1.3
SYIC - 47510 DAT40 x SCK1 - 80 148.4 50.9 18 11 19 M4 x 0.7P 1
SYIC - 47512 DAT40 x SCK1 - 95 163.4 65.9 18 11 19 M4 x 0.7P 1.05
SYIC - 47514 DAT40 x SCK2 - 80 148.4 50.9 18.5 14 23.5 M5 x 0.8P 1.1
SYIC - 47516 DAT40 x SCK2 - 110 178.4 80.9 18.5 14 23.5 M5 x 0.8P 1.15
SYIC - 47518 DAT40 x SCK3 - 90 158.4 65.9 24 18 31 M6 x 1.0P 1.2
SYIC - 47520 DAT40 x SCK3 - 125 193.4 100.9 24 18 31 M6 x 1.0P 1.25
SYIC - 47522 DAT40 x SCK4 - 80 148.4 55.9 28 22 39 M8 x 1.25P 1.3
SYIC - 47524 DAT40 x SCK4 - 110 178.4 85.9 28 22 39 M8 x 1.25P 1.35
SYIC - 47526 DAT40 x SCK5 - 95 163.4 75.4 35 28 50 M10 x 1.5P 1.4
SYIC - 47528 DAT40 x SCK5 - 110 178.4 90.4 35 28 50 M10 x 1.5P 1.45
SYIC - 47530 DAT40 x SCK6 - 65 133.4 45.4 42 36 63 M12 x 1.75P 1.5
SYIC - 47532 DAT40 x SCK6 - 95 163.4 75.4 42 36 63 M12 x 1.75P 1.55
SYIC - 47534 DAT50 x SCK1 - 110 211.75 80.9 18 11 19 M4 x 0.7P 3.1
SYIC - 47536 DAT50 x SCK1 - 125 226.75 95.9 18 11 19 M4 x 0.7P 3.15
SYIC - 47538 DAT50 x SCK2 - 95 196.75 65.9 18.5 14 23.5 M5 x 0.8P 3.2
SYIC - 47540 DAT50 x SCK2 - 125 226.75 95.9 18.5 14 23.5 M5 x 0.8P 3.25
SYIC - 47542 DAT50 x SCK3 - 125 226.75 95.9 24 18 31 M6 x 1.0P 3.3
SYIC - 47544 DAT50 x SCK3 - 155 256.75 125.9 24 18 31 M6 x 1.0P 3.35
SYIC - 47546 DAT50 x SCK4 - 110 211.75 80.9 28 22 39 M8 x 1.25P 3.4
SYIC - 47548 DAT50 x SCK4 - 125 226.75 95.9 28 22 39 M8 x 1.25P 3.45
SYIC - 47550 DAT50 x SCK5 - 65 166.75 35.9 35 28 50 M10 x 1.5P 3.5
SYIC - 47552 DAT50 x SCK5 - 140 241.75 110.9 35 28 50 M10 x 1.5P 3.55
SYIC - 47554 DAT50 x SCK6 - 140 241.75 110.9 42 36 63 M12 x 1.75P 3.6
SYIC - 47556 DAT50 x SCK6 - 170 271.75 140.9 42 36 63 M12 x 1.75P 3.65
SYIC - 47558 DAT50 x SCK7 - 95 196.75 60 52 46 90 M20 x 2.0P 5
