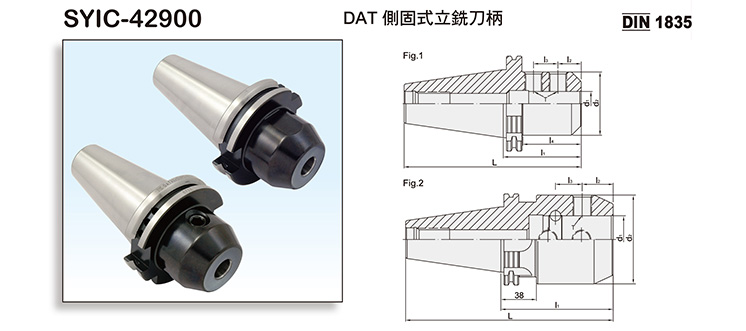

Product Name : DAT SIDE LOCK END MILL HOLDER
Product Introduction
  • Internal hole tolerance : H5(DIN-1835-B standard).
  • The tolerance of tool shank diameter is within h6.
  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1Ll2l3l4d2TFigWEIGHT (KGS)
SYIC - 42901 DAT30 x SLN6 - 50 97.8 18 - 25 25 M6 x 1.0P 1 0.73
SYIC - 42902 DAT30 x SLN8 - 50 97.8 18 - 27 28 M8 x 1.25P 1 0.80
SYIC - 42903 DAT30 x SLN10 - 50 97.8 20 - 27 35 M10 x 1.5P 1 0.90
SYIC - 42904 DAT30 x SLN12 - 50 97.8 22.5 - 29 42 M12 x 1.75P 1 0.90
SYIC - 42905 DAT30 x SLN16 - 63 110.8 24 - 43 45 M14 x 2.0P 1 1.10
SYIC - 42911 DAT40 x SLN6 - 50 118.4 18 - 27 25 M6 x 1.0P 1 0.85
SYIC - 42913 DAT40 x SLN8 - 50 118.4 18 - 27 28 M8 x 1.25P 1 1.00
SYIC - 42915 DAT40 x SLN10 - 50 118.4 20 - 27 35 M10 x 1.5P 1 1.10
SYIC - 42917 DAT40 x SLN12 - 50 118.4 22.5 - 30 42 M12 x 1.75P 1 1.15
SYIC - 42919 DAT40 x SLN16 - 63 131.4 24 - 43 48 M14 x 2.0P 1 1.40
SYIC - 42921 DAT40 x SLN20 - 63 131.4 25 - 43 52 M16 x 2.0P 1 1.30
SYIC - 42923 DAT40 x SLN25 - 100 168.4 24 25 65 65 M18 x 2.0P 1 2.40
SYIC - 42925 DAT40 x SLN32 - 100 168.4 24 28 65 72 M20 x 2.0P 1 2.70
SYIC - 42931 DAT50 x SLN6 - 63 164.75 18 - 33 25 M6 x 1.0P 1 3.10
SYIC - 42933 DAT50 x SLN8 - 63 164.75 18 - 33 28 M8 x 1.25P 1 3.10
SYIC - 42935 DAT50 x SLN10 - 63 164.75 20 - 33 35 M10 x 1.5P 1 3.30
SYIC - 42937 DAT50 x SLN12 - 63 164.75 22.5 - 40 42 M12 x 1.75P 1 3.50
SYIC - 42939 DAT50 x SLN16 - 63 164.75 24 - 40 48 M14 x 2.0P 1 3.45
SYIC - 42941 DAT50 x SLN20 - 63 164.75 25 - 40 52 M16 x 2.0P 1 3.50
SYIC - 42943 DAT50 x SLN25 - 80 181.75 24 25 59 65 M18 x 2.0P 1 4.20
SYIC - 42945 DAT50 x SLN32 - 100 201.75 24 28 78 72 M20 x 2.0P 1 5.00
SYIC - 42947 DAT50 x SLN40 - 100 201.75 30 32 80 90 M20 x 2.0P 1 5.60
SYIC - 42949 DAT50 x SLN42 - 100 201.75 30 32 80 90 M20 x 2.0P 1 5.70
SYIC - 42951 DAT50 x SLN50 - 125 201.75 35 35 85 100 M24 x 2.0P 1 5.90
SYIC - 42952 DAT50 x SLN50.8 - 120 221.75 33.1 28.58 82 95 M20 x 2.0P 2 5.80
SYIC - 42953 DAT50 x SLN63 - 150 251.75 40 40 112 125 M20 x 2.0P 1 6.20
SYIC - 42955 DAT50 x SLN63 - 150 251.75 40 24 112 125 M16 x 2.0P 2 6.20
