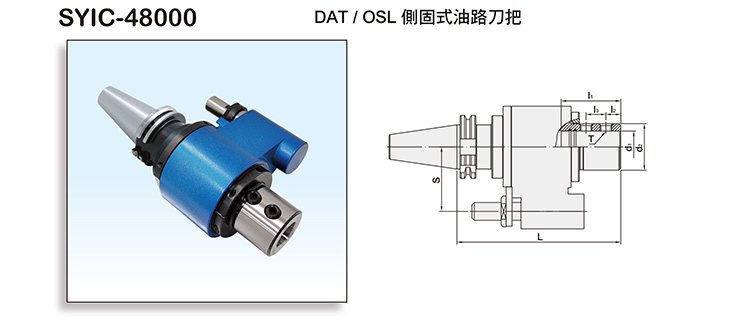

Product Name : DAT/SIDE LOCK OIL HOLE HOLDER
Product Introduction
  • Please confirm the "S" size when ordering.
  • Please confirm the machine center has high pressure pump.
  • Water pressure up to 7 kgf/cm2.
  • Max. revolution: 3000 rpm.



MODEL NO.TYPE d1 - Ld2l1l2l3STWEIGHT (KGS)
SYIC - 48001 DAT40 x OSL16 - 165 46.5 48 25 - 65 M12 x 1.75P 3.5
SYIC - 48003 DAT40 x OSL20 - 165 46.5 50 25 - 65 M12 x 1.75P 3.5
SYIC - 48005 DAT40 x OSL25 - 165 46.5 56 15 20 65 M12 x 1.75P 3.5
SYIC - 48007 DAT40 x OSL32 - 165 47 60 15 20 65 M12 x 1.75P 3.5
SYIC - 48002 DAT40 x OSL16 - 165S 46.5 48 25 - 60 M12 x 1.75P 3.5
SYIC - 48004 DAT40 x OSL20 - 165S 46.5 50 25 - 60 M12 x 1.75P 3.5
SYIC - 48006 DAT40 x OSL25 - 165S 46.5 56 15 20 60 M12 x 1.75P 3.5
SYIC - 48008 DAT40 x OSL32 - 165S 47 60 15 20 60 M12 x 1.75P 3.8
SYIC - 48009 DAT50 x OSL16 - 165 56 48 25 - 80 M14 x 2.0P 7
SYIC - 48011 DAT50 x OSL20 - 165 56 50 25 - 80 M12 x 1.75P 7.5
SYIC - 48013 DAT50 x OSL25 - 165 56 56 15 20 80 M16 x 2.0P 7.5
SYIC - 48015 DAT50 x OSL32 - 170 56 60 15 20 80 M16 x 2.0P 7.8
SYIC - 48017 DAT50 x OSL40 - 170 56 62 15 25 80 M14 x 2.0P 8.5
SYIC - 48019 DAT50 x OSL16 - 165M 56 48 25 - 82 M14 x 2.0P 7.1
SYIC - 48021 DAT50 x OSL20 - 165M 56 50 25 - 82 M12 x 1.75P 7.6
SYIC - 48023 DAT50 x OSL25 - 165M 56 56 15 20 82 M16 x 2.0P 7.7
SYIC - 48025 DAT50 x OSL32 - 170M 56 60 15 20 82 M16 x 2.0P 7.8
SYIC - 48027 DAT50 x OSL40 - 170M 56 62 15 25 82 M14 x 2.0P 8.5
SYIC - 48029 DAT50 x OSL16 - 165L 56 48 25 - 85 M14 x 2.0P 7.2
SYIC - 48031 DAT50 x OSL20 - 165L 56 50 25 - 85 M12 x 1.75P 7.8
SYIC - 48033 DAT50 x OSL25 - 165L 56 56 15 20 85 M16 x 2.0P 7.8
SYIC - 48035 DAT50 x OSL32 - 170L 56 60 15 20 85 M16 x 2.0P 8
SYIC - 48037 DAT50 x OSL40 - 170L 56 62 15 25 85 M14 x 2.0P 8.7
