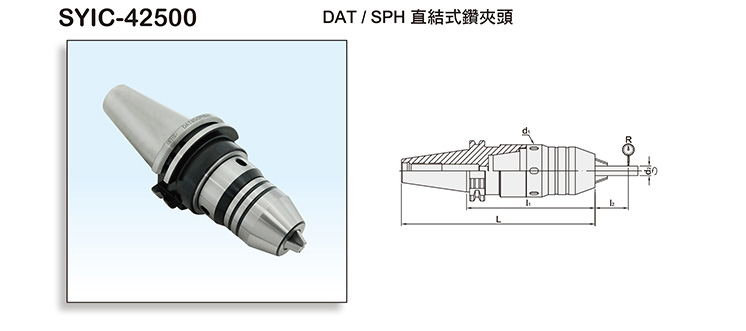

Product Name : DAT/SPH DRILL CHUCK ADAPTER INTEGRATED TYPE
Product Introduction

This product is added with multi safety design and suitable for Machine Center. In automatic operation controlled by computer and unmanned management process, it can be processed safely and smoothly.

  • he pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPELl2d1d2RWEIGHT (KGS)
SYIC - 42536 DAT40 x SPH8 - 90 158.4 55 42 6 0.04 1.78
SYIC - 42542 DAT40 x SPH13 - 115 183.4 75 54 13 0.04 2.33
SYIC - 42544 DAT40 x SPH13 - 135 203.4 75 54 13 0.04 2.63
SYIC - 42550 DAT40 x SPH16 - 130 198.4 80 62 13 0.04 2.83
SYIC - 42554 DAT40 x SPH16 - 150 218.4 80 62 13 0.04 3.18
SYIC - 42560 DAT50 x SPH8 - 80 181.75 55 42 6 0.04 2.33
SYIC - 42564 DAT50 x SPH13 - 100 201.75 75 54 13 0.04 2.63
SYIC - 42568 DAT50 x SPH13 - 120 221.75 75 54 13 0.04 2.83
SYIC - 42572 DAT50 x SPH16 - 100 201.75 80 62 13 0.04 3.15
SYIC - 42576 DAT50 x SPH16 - 120 221.75 80 62 13 0.04 3.25
