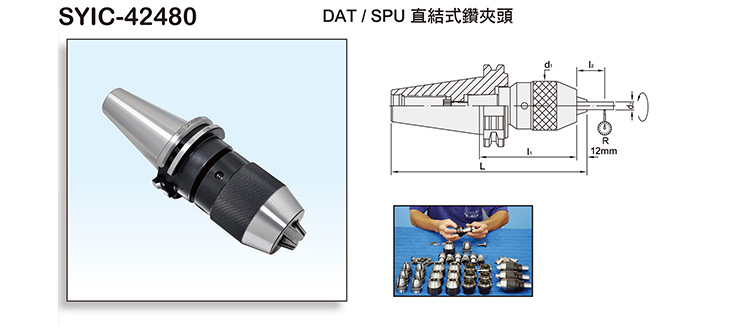

Product Name : DAT/SPU DRILL CHUCK ADAPTER
Product Introduction

This product is added with multi safety design and suitable for Machine Center. In automatic operation controlled by computer and unmanned management process, it can be processed safely and smoothly.

  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPEl1Ll2d1d2RWEIGHT (KGS)
SYIC - 42480 DAT30 x SPU8 - 80 80 139.8 55 37 6 0.04 0.6
SYIC - 42482 DAT30 x SPU13 - 120 120 179.8 75 50 13 0.04 1.45
SYIC - 42483 DAT30 x SPU16 - 120 120 179.8 75 57 16 0.04 1.78
SYIC - 42485 DAT40 x SPU8 - 75 75 155.4 55 37 6 0.04 1.32
SYIC - 42487 DAT40 x SPU13 - 100 96 176.4 75 50 13 0.04 1.92
SYIC - 42488 DAT40 x SPU16 - 115 115 195.4 80 57 16 0.04 2.28
SYIC - 42489 DAT50 x SPU8 - 75 75 188.75 55 37 6 0.04 3.86
SYIC - 42495 DAT50 x SPU13 - 100 100 213.75 75 50 13 0.04 4.4
SYIC - 42496 DAT50 x SPU16 - 105 105 218.75 80 57 16 0.04 4.48
