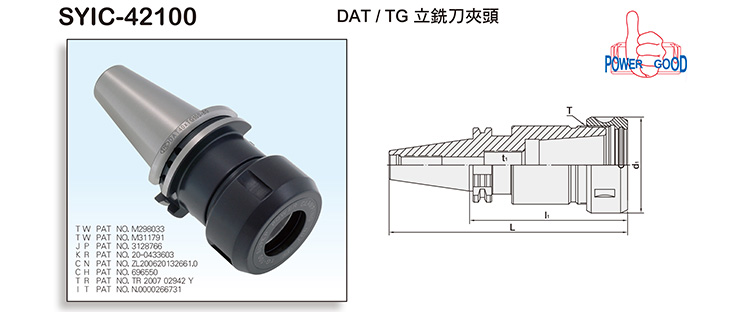

Product Name : DAT/TG COLLET CHUCK
Product Introduction
d1 TEST BAR DIAMETER MIN. MAX.LCONCENTRICITY
3 6 16 0.01
6 10 25 0.01
10 18 40 0.01
18 24 50 0.01
24 32 60 0.01
  • Every collet shipped out of the factory has been passed inspection.
  • Standard testing table is in accordance with the cutting length and precise requirements of various sizes of end mills.



  • Collet taper is 4.1751°, good concentricity and clamping capacity.
  • Suitable for heavy-duty cutting.
  • Particular square thread design enables good clamping capacity.
  • The price includes a nut, but without any spanner and collets.
  • While ordering, other Power Good Nuts could be purchased separately for combination.
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
