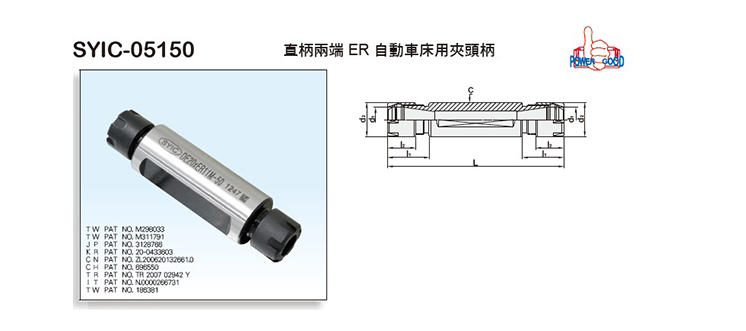

Product Name : Double-Ended Straight Shank ER Collet Chuck For Automatic Lathe
Product Introduction
  • Material: alloy steel of nickel, chromium and molybdenum. (Good tolerance to prevent vibrantion, not easy to get deformed.)
  • Hardness: body 56°-60°HRC, thread 44°-46°HRC, Two- parted rigidity design.
  • The concentricity of the internal hole is 0.005mm, which extends tool life.
  • The tolerance of the chuck's diameter is -0.005-0.008mm with high operation efficiency.
  • The flat side of the holder is for the side lock screw to fasten.
  • Double head style is suitable for automatic lathe and multi- purposed processing.
  • Suitable for all kinds of CNC lathes.
  • Compatible with three kinds of ER collets-0.015mm (Class standard), 0.01mm(Class A) and 0.005mm(Class UP), which are graded by their precision.
  • Compatible with ER-TC RIGID TAP COLLETS and control machinery for rigid tap processing.
  • Compatible with FLOATING TAP COLLETS and control machinery for soft tap processing.
  • Compatible with COOLANT COLLETS and control machinery for better metal chips removal.
  • TYPE C20 is suitable for the brand, TAKAMAZ CITIZEN MIYANO, conforming to SWISS MODEL.
  • TYPE C22 is suitable for the brand, STAR, conforming to the SWISS MODEL.
  • TYPE C23 is suitable for the brand, NOMURA, conforming to the SWISS MODEL.

SKS Collet

MODEL NO.TYPELl1l2Cd1d2WEIGHT (KGS)
SYIC - 05156 DE20 x ER11M - 50 83.2 16.6 12 20 11 16 0.12
SYIC - 05157 DE20 x ER11M - 75 108.2 16.6 12 20 11 16 0.12
SYIC - 05158 DE20 x ER16M - 50 103.2 26.6 18 20 16 22 0.1
SYIC - 05159 DE20 x ER16M - 75 128.2 26.6 18 20 16 22 0.12
SYIC - 05166 DE22 x ER11M - 60 93.2 16.6 12 22 11 16 0.12
SYIC - 05167 DE22 x ER11M - 100 133.2 16.6 12 22 11 16 0.14
SYIC - 05168 DE22 x ER16M - 60 113.2 26.6 18 22 16 22 0.14
SYIC - 05169 DE22 x ER16M - 100 153.2 26.6 18 22 16 22 0.16
SYIC - 05176 DE23 x ER11M - 60 93.2 16.6 12 23 11 16 0.16
SYIC - 05177 DE23 x ER11M - 100 133.2 16.6 12 23 11 16 0.18
SYIC - 05178 DE23 x ER16M - 60 26.6 26.6 18 23 16 22 0.2
SYIC - 05179 DE23 x ER16M - 100 153.2 26.6 18 23 16 22 0.21
