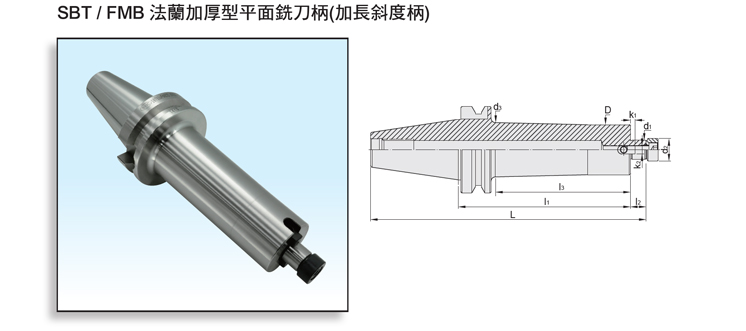

Product Name : DualDRIVE+ SBT Face Mill Arbor Extension Type
Product Introduction
  • d1 tolerance: h6.
  • The tool holder is through-hole, which is better for water to get through and anti-vibration.
  • The top of the tool holder has a design for taper, which can increase the rigidity.
  • The pre-balance can reach G6.3 3,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ll1l2l3Dd1d2d3K1K2WEIGHT (KGS)
26.154.22.150 SBT40 x FMB22 - 150BG 234.4 150 19 118 48 22 26 51 4.8 10 3.1
26.154.22.200 SBT40 x FMB22 - 200BG 284.4 200 19 168 48 22 26 51 4.8 10 4
26.154.22.250 SBT40 x FMB22 - 250BG 334.4 250 19 218 48 22 26 51 4.8 10 4.9
27.154.22.150 SBT50 x FMB22 - 150BG 270.8 150 19 107 58 22 26 62.5 4.25 9.52 6.8
27.154.22.200 SBT50 x FMB22 - 200BG 320.8 200 19 157 58 22 26 62.5 4.25 9.52 8.4
27.154.22.250 SBT50 x FMB22 - 250BG 370.8 250 19 207 58 22 26 62.5 4.25 9.52 9.4
27.154.22.300 SBT50 x FMB22 - 300BG 420.8 300 19 257 58 22 26 62.5 4.25 9.52 10.4
27.154.22.350 SBT50 x FMB22 - 350BG 470.8 350 19 307 58 22 26 62.5 4.25 9.52 11.4
27.154.22.400 SBT50 x FMB22 - 400BG 520.8 400 19 352 58 22 26 62.5 4.25 9.52 12.4
27.154.22.450 SBT50 x FMB22 - 450BG 570.8 450 19 402 58 22 26 62.5 4.25 9.52 13.4
27.154.22.500 SBT50 x FMB22 - 500BG 620.8 500 19 452 58 22 26 62.5 4.25 9.52 14.4
27.154.27.150 SBT50 x FMB27 - 150BG 271.8 150 20 107 70 27 31.5 78 5.8 12 6.8
27.154.27.200 SBT50 x FMB27 - 200BG 321.8 200 20 157 70 27 31.5 78 5.8 12 8.4
27.154.27.250 SBT50 x FMB27 - 250BG 371.8 250 20 207 70 27 31.5 78 5.8 12 9.4
27.154.27.300 SBT50 x FMB27 - 300BG 421.8 300 20 257 70 27 31.5 78 5.8 12 10.4
27.154.27.350 SBT50 x FMB27 - 350BG 471.8 350 20 307 70 27 31.5 78 5.8 12 11.4
27.154.27.400 SBT50 x FMB27 - 400BG 521.8 400 20 352 70 27 31.5 78 5.8 12 12.4
27.154.27.450 SBT50 x FMB27 - 450BG 571.8 450 20 402 70 27 31.5 78 5.8 12 13.4
27.154.27.500 SBT50 x FMB27 - 500BG 621.8 500 20 452 70 27 31.5 78 5.8 12 14.4
27.154.32.150 SBT50 x FMB32 - 150BG 273.8 150 22 107 78 32 41 85 6.8 14 7
27.154.32.200 SBT50 x FMB32 - 200BG 323.8 200 22 157 78 32 41 85 6.8 14 8.5
27.154.32.250 SBT50 x FMB32 - 250BG 373.8 250 22 207 78 32 41 85 6.8 14 9.5
27.154.32.300 SBT50 x FMB32 - 300BG 423.8 300 22 257 78 32 41 85 6.8 14 10.5
27.154.32.350 SBT50 x FMB32 - 350BG 473.8 350 22 307 78 32 41 85 6.8 14 11.5
27.154.32.400 SBT50 x FMB32 - 400BG 523.8 400 22 352 78 32 41 85 6.8 14 12.5
27.154.32.450 SBT50 x FMB32 - 450BG 573.8 450 22 402 78 32 41 85 6.8 14 13.5
27.154.32.500 SBT50 x FMB32 - 500BG 623.8 500 22 452 78 32 41 85 6.8 14 14.5
