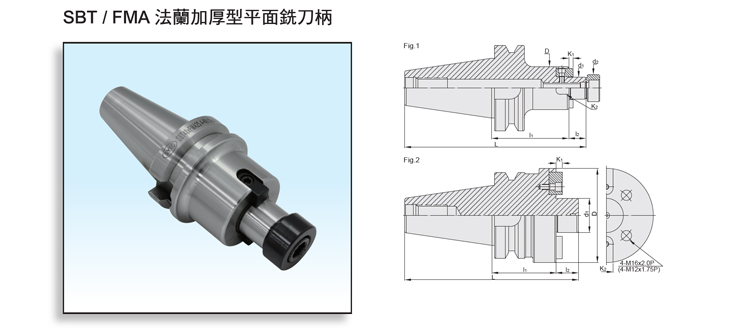

Product Name : DualDRIVE+ SBT Face Mill Arbor Type Fma
Product Introduction
  • d1 tolerance : h6.
  • Tolerance of 7/24 taper : AT3.
  • The pre-balance can reach G6.3 3,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPELl1l2Dd1d2K1K2FigWEIGHT (KGS)
25.151.68.045 SBT30 x FMA25.4 - 45 113.4 45 20 50 25.4 31.5 4.52 9.52 1 1.1
25.151.68.060 SBT30 x FMA25.4 - 60 128.4 60 20 50 25.4 31.5 4.52 9.52 1 1.3
25.151.72.045 SBT30 x FMA31.75 - 45 115.4 45 22 60 31.75 41 6.7 12.7 1 1.16
26.151.68.045 SBT40 x FMA25.4 - 45 130.4 45 20 50 25.4 31.5 4.52 9.52 1 1.8
26.151.68.060 SBT40 x FMA25.4 - 60 145.4 60 20 50 25.4 31.5 4.52 9.52 1 1.45
26.151.68.090 SBT40 x FMA25.4 - 90 175.4 90 20 50 25.4 31.5 4.52 9.52 1 2.1
26.151.68.105 SBT40 x FMA25.4 - 105 190.4 105 20 50 25.4 31.5 4.52 9.52 1 2.7
26.151.72.045 SBT40 x FMA31.75 - 45 132.4 45 22 60 31.75 41 6.7 12.7 1 1.7
26.151.72.075 SBT40 x FMA31.75 - 75 162.4 75 22 60 31.75 41 6.7 12.7 1 2.7
26.151.72.090 SBT40 x FMA31.75 - 90 177.4 90 22 60 31.75 41 6.7 12.7 1 2.65
26.151.77.060 SBT40 x FMA38.1 - 60 150.4 60 25 75 38.1 44.5 8.87 15.87 1 2.25
26.151.86.060 SBT40 x FMA50.8 - 60 161.4 60 36 98 50.8 65 9.75 19.05 1 2.25
27.151.68.045 SBT50 x FMA25.4 - 45 166.8 45 20 50 25.4 31.5 4.52 9.52 1 4.4
27.151.68.090 SBT50 x FMA25.4 - 90 211.8 90 20 50 25.4 31.5 4.52 9.52 1 5.1
27.151.68.150 SBT50 x FMA25.4 - 150 271.8 150 20 50 25.4 31.5 4.52 9.52 1 6.1
27.151.72.045 SBT50 x FMA31.75 - 45 168.8 45 22 60 31.75 41 6.2 12.7 1 4.5
27.151.72.075 SBT50 x FMA31.75 - 75 198.8 75 22 60 31.75 41 6.7 12.7 1 5.7
27.151.72.105 SBT50 x FMA31.75 - 105 228.8 105 22 60 31.75 41 6.7 12.7 1 5.7
27.151.77.045 SBT50 x FMA38.1 - 45 171.8 45 25 80 38.1 44.5 8.87 15.87 1 5.2
27.151.77.075 SBT50 x FMA38.1 - 75 201.8 75 25 80 38.1 44.5 8.87 15.87 1 6
27.151.86.045 SBT50 x FMA50.8 - 45 182.8 45 36 98 50.8 65 9.75 19.05 1 5.7
27.151.86.075 SBT50 x FMA50.8 - 75 212.8 75 36 98 50.8 65 9.75 19.05 1 6.8
27.151.84.075 SBT50 x FMA47.62 - 75 208.8 75 32 128.75 47.62 - 12.5 25.4 2 7.9
