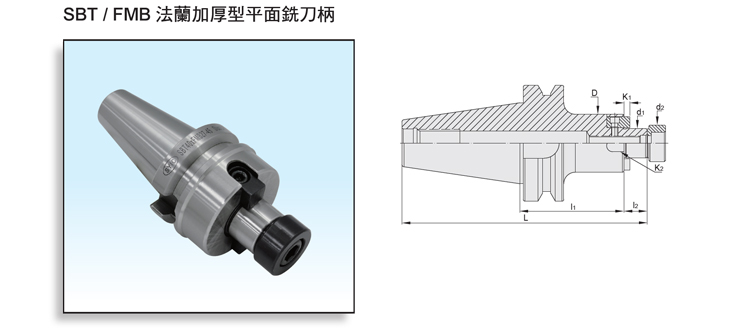

Product Name : DualDRIVE+ SBT Face Mill Arbor Type Fmb
Product Introduction
  • d1 tolerance : h6.
  • Tolerance of 7/24 taper : AT3.
  • The pre-balance can reach G6.3 3,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPELl1l2Dd1d2K1K2WEIGHT (KGS)
25.153.22.045 SBT30 x FMB22 - 45 115.4 45 19 48 22 26 4.8 10 0.85
25.153.22.060 SBT30 x FMB22 - 60 127.4 60 19 48 22 26 4.8 10 1.02
25.153.27.045 SBT30 x FMB27 - 45 113.4 45 20 60 27 31.5 5.8 12 1.06
25.153.27.060 SBT30 x FMB27 - 60 128.4 60 20 60 27 31.5 5.8 12 1.35
25.153.32.045 SBT30 x FMB32 - 45 115.4 45 22 78 32 41 6.8 14 1.35
26.153.22.045 SBT40 x FMB22 - 45 129.4 45 19 48 22 26 4.8 10 1.45
26.153.22.060 SBT40 x FMB22 - 60 144.4 60 19 48 22 26 4.8 10 1.54
26.153.22.100 SBT40 x FMB22 - 100 184.4 100 19 48 22 26 4.8 10 2.1
26.153.27.045 SBT40 x FMB27 - 45 130.4 45 20 60 27 31.5 5.8 12 1.6
26.153.27.060 SBT40 x FMB27 - 60 145.4 60 20 60 27 31.5 5.8 12 2
26.153.27.090 SBT40 x FMB27 - 90 175.4 90 20 60 27 31.5 5.8 12 2.3
26.153.27.105 SBT40 x FMB27 - 105 190.4 105 20 60 27 31.5 5.8 12 2.1
26.153.32.045 SBT40 x FMB32 - 45 132.4 45 22 78 32 41 6.8 14 2
26.153.32.060 SBT40 x FMB32 - 60 147.4 60 22 78 32 41 6.8 14 2.35
26.153.40.060 SBT40 x FMB40 - 60 150.4   25 80 40 48 8.3 16 2.8
27.153.22.045 SBT50 x FMB22 - 45 165.8 45 19 48 22 26 4.8 10 4.75
27.153.22.090 SBT50 x FMB22 - 90 210.8 90 19 48 22 26 4.8 10 5.1
27.153.22.150 SBT50 x FMB22 - 150 270.8 150 19 48 22 26 4.8 10 6.8
27.153.27.050 SBT50 x FMB27 - 50 171.8 50 20 60 27 31.5 5.8 12 4.3
27.153.27.090 SBT50 x FMB27 - 90 211.8 90 20 60 27 31.5 5.8 12 5.4
27.153.27.150 SBT50 x FMB27 - 150 271.8 150 20 60 27 31.5 5.8 12 6.5
27.153.27.200 SBT50 x FMB27 - 200 321.8 200 20 60 27 31.5 5.8 12 7.5
27.153.27.250 SBT50 x FMB27 - 250 371.8 250 20 60 27 31.5 5.8 12 8.5
27.153.32.050 SBT50 x FMB32 - 50 173.8 50 22 78 32 41 6.8 14 4.6
27.153.32.090 SBT50 x FMB32 - 90 213.8 90 22 78 32 41 6.8 14 5.8
27.153.40.050 SBT50 x FMB40 - 50 176.8 50 25 89 40 48 8.3 16 5.2
27.153.40.090 SBT50 x FMB40 - 90 216.8 90 25 89 40 48 8.3 16 6
27.153.40.105 SBT50 x FMB40 - 105 231.8 105 25 89 40 48 8.3 16 7.2
