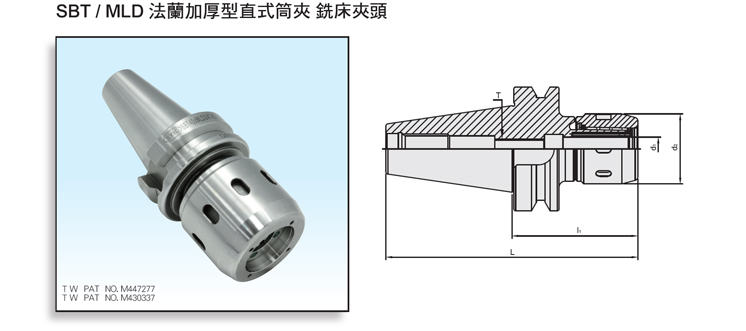

Product Name : DualDRIVE+ SBT/MLD Multi-Lock Milling Chuck
Product Introduction
  • There is a special design for the slots of internal hole. It prevents the cutting tools from slipping and increases the clamping power.
  • The body of the tool holder is thick, so it has good clamping power. It adopts the needle bearing design to prevent the slipping. The operation is convenient and easy.
  • After locking the cutting tool (The tolerance of the cutting tool must be less than h6), it is more contacted with the flange while locking the clamping nut and tool holder. It can prevent the bearing cage from deformation easily.
    Also, rigidity and dust-proof function is improved.
  • High stability of the precision and easy for combination. There won’t be a situation of vibration during the high speed processing or big cutting depth.
  • Good clamping power. The clamping power of MLD32 type is around 1000 N-m.
  • Run-out: Within 0.001~0.005mm.
  • Concentricity: 0.02mm.
  • The pre-balance can reach G6.3 8,000RPM, with an inspection report. The balancing grade and revolution can be done according to customer's request but the additional charge is needed.

  • When using MLD sealed cap, the coolant fluid discharges from the cutting tool.It's good for heat dissipation and metal chips removal.

  • The design of coolant grooves improves the cooling and metal chips removal capability.
MODEL NO.TYPELl1d1d2TWEIGHT (KGS)
25.463G.12.065 SBT30 x MLD12 - 65 113.4 65 12 42 M12 x 1.75P 1
25.463G.16.075 SBT30 x MLD16 - 75 123.4 75 16 48 M12 x 1.75P 1.2
25.463G.20.080 SBT30 x MLD20 - 80 128.4 80 20 56.5 M12 x 1.75P 1.9
25.463G.20.090 SBT30 x MLD20 - 90 138.4 90 20 56.5 M16 x 2.0P 2
25.463G.25.090 SBT30 x MLD25 - 90 128.4 90 25 60 M16 x 2.0P 1.8
26.463G.12.075 SBT40 x MLD12 - 75 140.4 75 12 42 M12 x 1.75P 1.5
26.463G.12.105 SBT40 x MLD12 - 105 170.4 105 12 42 M12 x 1.75P 2
26.463G.12.135 SBT40 x MLD12 - 135 200.4 135 12 42 M12 x 1.75P 2.1
26.463G.16.075 SBT40 x MLD16 - 75 140.4 75 16 48 M12 x 1.75P 1.7
26.463G.16.105 SBT40 x MLD16 - 105 170.4 105 16 48 M12 x 1.75P 2.3
26.463G.16.135 SBT40 x MLD16 - 135 200.4 135 16 48 M12 x 1.75P 2.4
26.463G.20.080 SBT40 x MLD20 - 80 145.4 80 20 56.5 M16 x 2.0P 2.3
26.463G.20.100 SBT40 x MLD20 - 100 165.4 100 20 56.5 M16 x 2.0P 2.5
26.463G.20.135 SBT40 x MLD20 - 135 200.4 135 20 56.5 M16 x 2.0P 2.8
26.463G.25.085 SBT40 x MLD25 - 85 150.4 85 25 60 M16 x 2.0P 2.2
26.463G.25.100 SBT40 x MLD25 - 100 165.4 100 25 60 M16 x 2.0P 2.4
26.463G.32.095 SBT40 x MLD32 - 95 160.4 95 32 71 M16 x 2.0P 2.7
26.463G.32.105 SBT40 x MLD32 - 105 170.4 105 32 71 M16 x 2.0P 2.7
26.463G.32.135 SBT40 x MLD32 - 135 200.4 135 32 71 M16 x 2.0P 3
MODEL NO.TYPELl1d1d2TWEIGHT (KGS)
27.463G.12.105 SBT50 x MLD12 - 105 206.8 105 12 42 M12 x 1.75P 4.6
27.463G.12.135 SBT50 x MLD12 - 135 236.8 135 12 42 M12 x 1.75P 5.1
27.463G.12.165 SBT50 x MLD12 - 165 266.8 165 12 42 M12 x 1.75P 5.8
27.463G.16.105 SBT50 x MLD16 - 105 206.8 105 16 48 M12 x 1.75P 4.9
27.463G.16.135 SBT50 x MLD16 - 135 236.8 135 16 48 M12 x 1.75P 5.6
27.463G.16.165 SBT50 x MLD16 - 165 266.8 165 16 48 M12 x 1.75P 6.5
27.463G.20.105 SBT50 x MLD20 - 105 206.8 105 20 56.5 M16 x 2.0P 4.5
27.463G.20.150 SBT50 x MLD20 - 150 251.8 150 20 56.5 M16 x 2.0P 4.9
27.463G.25.100 SBT50 x MLD25 - 100 201.8 100 25 60 M16 x 2.0P 4.8
27.463G.25.130 SBT50 x MLD25 - 130 231.8 130 25 60 M16 x 2.0P 5.7
27.463G.32.105 SBT50 x MLD32 - 105 206.8 105 32 71 M24 x 3.0P 5
27.463G.32.135 SBT50 x MLD32 - 135 236.8 135 32 71 M24 x 3.0P 5.2
27.463G.32.165 SBT50 x MLD32 - 165 266.8 165 32 71 M24 x 3.0P 6.7
27.463G.42.115 SBT50 x MLD42 - 115 216.8 115 42 90 M24 x 3.0P 5.5
27.463G.42.130 SBT50 x MLD42 - 130 225.8 130 42 90 M24 x 3.0P 6.5
27.463G.42.165 SBT50 x MLD42 - 165 260.8 165 42 90 M24 x 3.0P 7.7
MODEL NO.TYPELl1d1d2TWEIGHT (KGS)
25.463G.58.256 SBT30 x MLD1/2'' - 2.56'' 4.46 2.56 0.5 0.625 M12 x 1.75P 1
25.463G.61.295 SBT30 x MLD5/8'' - 2.95'' 4.86 2.95 0.625 1.84 M12 x 1.75P 1.2
25.463G.64.354 SBT30 x MLD3/4'' - 3.54'' 5.449 3.54 0.75 2.244 M12 x 1.75P 1.9
25.463G.68.354 SBT30 x MLD1'' - 3.54'' 5.449 3.54 1 2.36 M16 x 2.0P 1.8
26.463G.58.295 SBT40 x MLD1/2'' - 2.95'' 5.528 2.95 0.5 0.625 M12 x 1.75P 1.5
26.463G.61.295 SBT40 x MLD5/8'' - 2.95'' 5.528 2.95 0.625 1.84 M12 x 1.75P 1.7
26.463G.64.315 SBT40 x MLD3/4'' - 3.15'' 5.724 3.15 0.75 2.244 M16 x 2.0P 2.3
26.463G.68.335 SBT40 x MLD1'' - 3.35'' 5.524 3.35 1 2.36 M16 x 2.0P 2.2
26.463G.72.400 SBT40 x MLD1-1/4'' - 4'' 6.575 4 1.25 2.795 M16 x 2.0P 2.7
27.463G.58.400 SBT50 x MLD1/2'' - 4'' 8.008 4 0.5 0.625 M12 x 1.75P 4.6
27.463G.61.400 SBT50 x MLD5/8'' - 4'' 8.008 4 0.625 1.84 M12 x 1.75P 4.9
27.463G.64.400 SBT50 x MLD3/4'' - 4'' 8.008 4 0.75 2.244 M16 x 2.0P 4.5
27.463G.68.413 SBT50 x MLD1'' - 4.13'' 8.14 4.13 1 2.36 M16 x 2.0P 4.8
27.463G.68.512 SBT50 x MLD1'' - 5.12'' 9.126 5.12 1 2.36 M16 x 2.0P 5.7
27.463G.72.400 SBT50 x MLD1-1/4'' - 4'' 8.008 4 1.25 2.795 M24 x 3.0P 4.9
