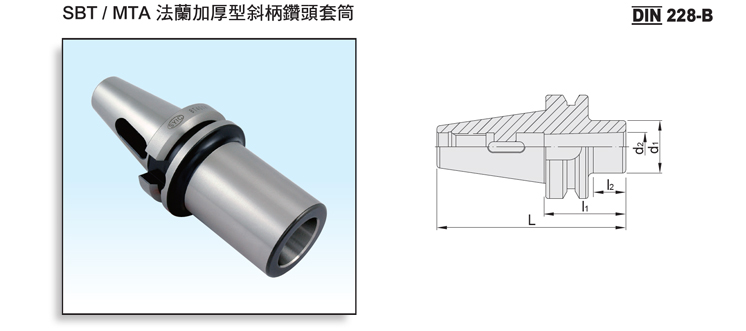

Product Name : DualDRIVE+ SBT Morse Taper Adapter Type Mta
Product Introduction
  • High accurate working process. Even though using prolonged drill, the concentricity is still within 0.015mm.



MODEL NO.TYPE
SBT - MTA - l1
Ll1l2d1d2WEIGHT (KGS)
25.465.01.045 SBT30 x MTA1 - 45 93.4 45 20 25 12.065 0.55
25.465.01.105 SBT30 x MTA1 - 105 153.4 105 78 25 12.065 0.8
25.465.02.060 SBT30 x MTA2 - 60 108.4 60 35 32 17.78 0.6
25.465.02.120 SBT30 x MTA2 - 120 168.4 120 95 32 17.78 0.9
25.465.03.080 SBT30 x MTA3 - 80 128.4 80 56 40 23.825 0.8
26.465.01.045 SBT40 x MTA1 - 45 110.4 45 15 25 12.065 1.05
26.465.01.120 SBT40 x MTA1 - 120 185.4 120 83 25 12.065 1.4
26.465.02.050 SBT40 x MTA2 - 50 115.4 50 20 32 17.78 1.1
26.465.02.120 SBT40 x MTA2 - 120 185.4 120 88 32 17.78 1.45
26.465.03.070 SBT40 x MTA3 - 70 135.4 70 38 40 23.825 1.2
26.465.03.135 SBT40 x MTA3 - 135 200.4 135 102 40 23.825 1.9
26.465.04.095 SBT40 x MTA4 - 95 160.4 95 63 48 31.267 1.4
26.465.04.165 SBT40 x MTA4 - 165 230.4 165 133 48 31.267 2.5
27.465.01.045 SBT50 x MTA1 - 45 146.8 45 2 25 12.065 3.8
27.465.01.120 SBT50 x MTA1 - 120 221.8 120 74 25 12.065 4.3
27.465.01.180 SBT50 x MTA1 - 180 281.8 180 132 25 12.065 5
27.465.02.060 SBT50 x MTA2 - 60 161.8 60 17 32 17.78 4
27.465.02.135 SBT50 x MTA2 - 135 236.8 135 89 32 17.78 4.7
27.465.02.180 SBT50 x MTA2 - 180 281.8 180 132 32 17.78 5
27.465.03.065 SBT50 x MTA3 - 65 166.8 65 22 40 23.825 3.9
27.465.03.150 SBT50 x MTA3 - 150 251.8 150 107 40 23.825 5
27.465.03.180 SBT50 x MTA3 - 180 281.8 180 132 40 23.825 5.5
27.465.04.095 SBT50 x MTA4 - 95 196.8 95 52 48 31.267 4.2
27.465.04.180 SBT50 x MTA4 - 180 281.8 180 132 48 31.267 5.5
27.465.05.105 SBT50 x MTA5 - 105 206.8 105 62 63 44.399 4.3
