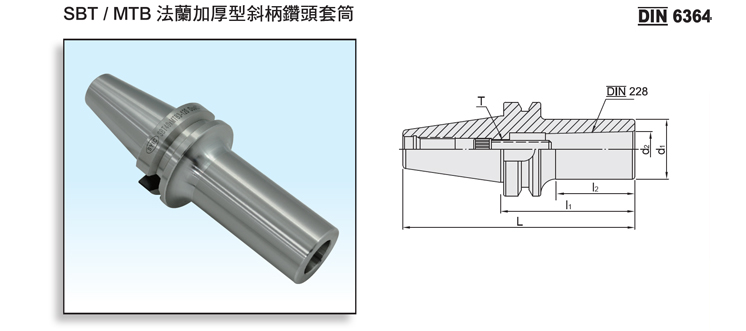

Product Name : DualDRIVE+ SBT Morse Taper Adapter Type Mtb
Product Introduction
  • High accurate working process. Even though using prolonged drill, the concentricity is still within 0.015mm.
  • Please confirm if you'd like to order screw in metric or inch size when making an order.



MODEL NO.TYPELl1l2d1d2TWEIGHT (KGS)
25.466.01.045 SBT30 x MTB1 - 45 93.4 45 20 25 12.065 M6 x 1.0P 0.55
25.466.01.045 SBT30 x MTB1 - 45 93.4 45 20 25 12.065 1/4" - 20 0.55
25.466.02.060 SBT30 x MTB2 - 60 108.4 60 36.5 32 17.78 M10 x 1.5P 0.6
25.466.02.060 SBT30 x MTB2 - 60 108.4 60 36.5 32 17.78 3/8" - 16 0.6
26.466.01.045 SBT40 x MTB1 - 45 110.4 45 13 25 12.065 M6 x 1.0P 1.1
26.466.01.045 SBT40 x MTB1 - 45 110.4 45 13 25 12.065 1/4" - 20 1.1
26.466.02.045 SBT40 x MTB2 - 45 110.4 45 13 32 17.78 M10 x 1.5P 1.1
26.466.02.045 SBT40 x MTB2 - 45 110.4 45 13 32 17.78 3/8" - 16 1.1
26.466.02.185 SBT40 x MTB2 - 185 250.4 185 148 32 17.78 M10 x 1.5P 1.86
26.466.02.185 SBT40 x MTB2 - 185 250.4 185 148 32 17.78 3/8" - 16 1.86
26.466.03.075 SBT40 x MTB3 - 75 140.4 75 45 40 23.825 M12 x 1.75P or 1/2" - 12 1.3
26.466.03.090 SBT40 x MTB3 - 90 155.4 90 53 40 23.825 M12 x 1.75P or 1/2" - 12 1.4
26.466.03.120 SBT40 x MTB3 - 120 185.4 120 83 40 23.825 M12 x 1.75P or 1/2" - 12 1.8
26.466.03.180 SBT40 x MTB3 - 180 245.4 180 143 40 23.825 M12 x 1.75P or 1/2" - 12 2.4
26.466.04.100 SBT40 x MTB4 - 100 165.4 100 67 48 31.267 M16 x 2.0P or 5/8" - 11 1.6
26.466.04.120 SBT40 x MTB4 - 120 185.4 120 87 48 31.267 M16 x 2.0P or 5/8" - 11 1.8
26.466.04.180 SBT40 x MTB4 - 180 245.4 180 147 48 31.267 M16 x 2.0P or 5/8" - 11 2.6
27.466.01.045 SBT50 x MTB1 - 45 146.8 45 6 25 12.065 M6 x 1.0P 3.8
27.466.01.045 SBT50 x MTB1 - 45 146.8 45 6 25 12.065 1/4" - 20 3.8
27.466.02.045 SBT50 x MTB2 - 45 146.8 45 5 32 17.78 M10 x 1.5P 3.9
27.466.02.045 SBT50 x MTB2 - 45 146.8 45 5 32 17.78 3/8" - 16 3.9
27.466.03.060 SBT50 x MTB3 - 60 161.8 60 12 40 23.825 M12 x 1.75P 3.9
27.466.03.060 SBT50 x MTB3 - 60 161.8 60 12 40 23.825 1/2" - 12 3.9
27.466.04.075 SBT50 x MTB4 - 75 176.8 75 32 48 31.267 M16 x 2.0P 4.2
27.466.04.075 SBT50 x MTB4 - 75 176.8 75 32 48 31.267 5/8" - 11 4.2
27.466.05.120 SBT50 x MTB5 - 120 221.8 120 77 63 44.399 M24 x 3.0P 4.3
