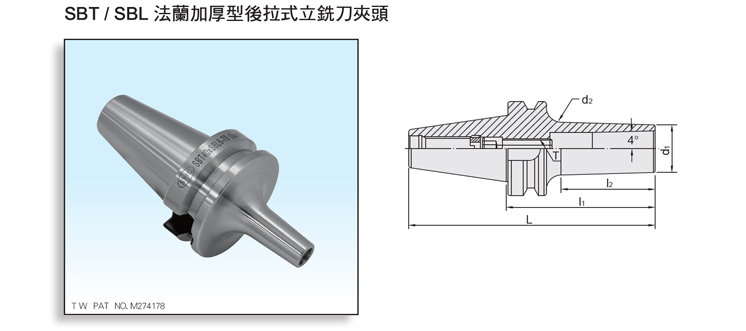

Product Name : DualDRIVE+ SBT/SBL Slim-Fit Collet Chuck
Product Introduction
  • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPELl1l2d1d2TWEIGHT (KGS)
25.648.06.070 SBT30 x SBL6 - 70 118.4 38 14 18 ø3 ~ ø6 M6 x 1.0P 0.6
25.648.06.100 SBT30 x SBL6 - 100 148.4 68 14 21 ø3 ~ ø6 M6 x 1.0P 1.25
25.648.12.070 SBT30 x SBL12 - 70 118.4 47 26 33 ø3 ~ ø12 M10 x 1.5P 1.2
25.648.12.100 SBT30 x SBL12 - 100 148.4 77 26 38 ø3 ~ ø12 M10 x 1.5P 1.45
25.648.20.080 SBT30 x SBL20 - 80 128.4 54 34 37 ø3 ~ ø20 M12 x 1.75P 1.2
25.648.20.100 SBT30 x SBL20 - 100 148.4 76 34 39 ø3 ~ ø20 M12 x 1.75P 1.45
26.648.06.070 SBT40 x SBL6 - 70 135.4 28 14 17 ø3 ~ ø6 M6 x 1.0P 1.2
26.648.06.100 SBT40 x SBL6 - 100 165.4 58 14 20 ø3 ~ ø6 M6 x 1.0P 1.6
26.648.12.070 SBT40 x SBL12 - 70 135.4 33 26 31 ø3 ~ ø12 M10 x 1.5P 1.5
26.648.12.100 SBT40 x SBL12 - 100 165.4 63 26   ø3 ~ ø12 M10 x 1.5P 1.7
26.648.20.070 SBT40 x SBL20 - 70 135.4 33 35 38 ø3 ~ ø20 M12 x 1.75P 1.5
26.648.20.100 SBT40 x SBL20 - 100 165.4 68 35 40 ø3 ~ ø20 M12 x 1.75P 1.7
26.648.20.130 SBT40 x SBL20 - 130 195.4 98 35 43 ø3 ~ ø20 M12 x 1.75P 1.74
26.648.25.080 SBT40 x SBL25 - 80 145.4 50.1 40 44.3 ø3 - ø25.4 M16 x 2.0P 1.7
26.648.25.100 SBT40 x SBL25 - 100 165.4 70.1 40 46.1 ø3 - ø25.4 M16 x 2.0P 1.9
27.648.06.070 SBT50 x SBL6 - 70 171.8 17 14 15 ø3 ~ ø6 M6 x 1.0P 4
27.648.06.100 SBT50 x SBL6 - 100 201.8 47 14 19 ø3 ~ ø6 M6 x 1.0P 4.1
27.648.12.070 SBT50 x SBL12 - 70 171.8 22 26 28 ø3 ~ ø12 M10 x 1.5P 4.2
27.648.12.100 SBT50 x SBL12 - 100 201.8 52 26 30 ø3 ~ ø12 M10 x 1.5P 4.3
27.648.12.125 SBT50 x SBL12 - 125 226.8 77 26 32 ø3 ~ ø12 M10 x 1.5P 4.4
27.648.20.070 SBT50 x SBL20 - 70 171.8 22 35 36 ø3 ~ ø20 M12 x 1.75P 4.6
27.648.20.100 SBT50 x SBL20 - 100 201.8 52 35 39 ø3 ~ ø20 M12 x 1.75P 4.7
27.648.20.125 SBT50 x SBL20 - 125 226.8 77 35 41 ø3 ~ ø20 M12 x 1.75P 4.22
27.648.25.070 SBT50 x SBL25 - 70 171.8 22.4 40 41.9 ø3 ~ø25.4 M16 x 2.0P 4.8
27.648.25.100 SBT50 x SBL25 - 100 201.8 52.4 40 44.5 ø3 ~ø25.4 M16 x 2.0P 5
