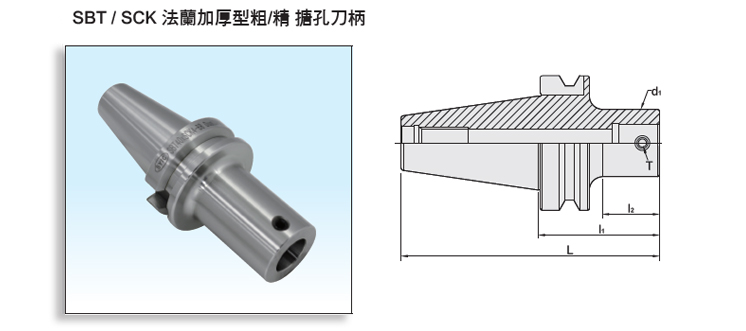

Product Name : DualDRIVE + SBT / SCK Boring Head Shank
Product Introduction
  • Can be used with SYIC-17550 Extension Spacer, more convenient for machining.
  • Internal tolerance is H6.



MODEL NO.TYPE - l1Ll2d1TWEIGHT (KGS)
25.650.02.37.5 SBT30 x SCK2 - 37.5 85.9 12.5 23.5 M5 x 0.8P 0.4
25.650.02.82.5 SBT30 x SCK2 - 82.5 130.9 57.5 23.5 M5 x 0.8P 0.6
25.650.03.039 SBT30 x SCK3 - 39 87.4 13 31 M6 x 1.0P 0.5
25.650.03.079 SBT30 x SCK3 - 79 127.4 53 31 M6 x 1.0P 0.7
25.650.04.038 SBT30 x SCK4 - 38 86.4 14 39 M8 x 1.25P 0.5
25.650.04.073 SBT30 x SCK4 - 73 121.4 49 39 M8 x 1.25P 0.8
25.650.05.063 SBT30 x SCK5 - 63 111.4 40.5 50 M10 x 1.5P 0.85
25.650.06.064 SBT30 x SCK6 - 64 112.4 41.5 62 M12 x 1.75P 1.35
26.650.02.42.5 SBT40 x SCK2 - 42.5 107.9 12.5 23.5 M5 x 0.8P 1.1
26.650.02.82.5 SBT40 x SCK2 - 82.5 147.9 52.5 23.5 M5 x 0.8P 1.25
26.650.03.044 SBT40 x SCK3 - 44 109.4 13 31 M6 x 1.0P 1.15
26.650.03.094 SBT40 x SCK3 - 94 159.4 63 31 M6 x 1.0P 1.35
26.650.04.043 SBT40 x SCK4 - 43 108.4 14 39 M8 x 1.25P 1.25
26.650.04.088 SBT40 x SCK4 - 88 153.4 56 39 M8 x 1.25P 1.55
26.650.05.048 SBT40 x SCK5 - 48 113.4 19 50 M10 x 1.5P 1.25
26.650.05.078 SBT40 x SCK5 - 78 143.4 46 50 M10 x 1.5P 1.65
26.650.06.064 SBT40 x SCK6 - 64 129.4 36.5 63 M12 x 1.75P 1.65
