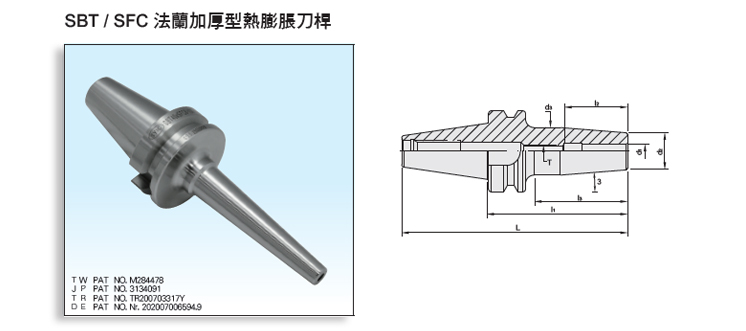

Product Name : DualDRIVE+ SBT/SFC Shrink Fit Chuck
Product Introduction
  • High rigidity.
  • T.I.R. : within 5 μ.
  • Slim design.
  • Easy handling.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1Ll2l3d2d3TWEIGHT (KGS)
25.651.53.315 SBT30 x SFC3/16" - 3.15" 5.06 0.79 1.91 0.43 - M6 x 1.0P 0.4
25.651.54.315 SBT30 x SFC1/4" - 3.15" 5.06 1.42 1.81 0.71 1.06 M5 x 0.8P 0.4
25.651.55.315 SBT30 x SFC5/16" - 3.15" 5.06 1.42 1.85 0.79 1.06 M6 x 1.0P 0.42
25.651.56.315 SBT30 x SFC3/8" - 3.15" 5.06 1.53 1.83 0.94 1.26 M8 x 1.25P 0.44
25.651.58.315 SBT30 x SFC1/2" - 3.15" 5.06 1.85 1.87 1.1 1.34 M10 x 1.5P 0.45
25.651.64.354 SBT30 x SFC3/4" - 3.54" 5.45 1.97 2.56 1.26 1.34 M16 x 2.0P 0.5
25.651.68.394 SBT30 x SFC1" - 3.94" 5.85 2.04 2.66 1.42 1.65 M20 x 2.0P 0.7
26.651.53.354 SBT40 x SFC3/16" - 3.54" 6.12 0.79 2.11 0.43 - M6 x 1.0P 0.09
26.651.54.354 SBT40 x SFC1/4" - 3.54" 6.12 1.42 2.04 0.71 1.02 M5 x 0.8P 1
26.651.55.354 SBT40 x SFC5/16" - 3.54" 6.12 1.42 2.11 0.79 1.02 M6 x 1.0P 1.1
26.651.56.354 SBT40 x SFC3/8" - 3.54" 6.12 1.53 2.11 0.94 1.26 M8 x 1.25P 1.1
26.651.58.354 SBT40 x SFC1/2" - 3.54" 6.12 1.85 2.28 1.1 1.34 M10 x 1.5P 1.2
26.651.64.354 SBT40 x SFC3/4" - 3.54" 6.12 1.97 2.28 1.26 1.34 M16 x 2.0P 1.2
26.651.68.394 SBT40 x SFC1" - 3.94" 6.51 2.04 2.83 1.42 1.65 M20 x 2.0P 1.3
27.651.53.354 SBT50 x SFC3/16" - 3.54" 7.55 0.79 1.71 0.43 - M6 x 1.0P 2.9
27.651.54.354 SBT50 x SFC1/4" - 3.54" 7.55 1.42 1.67 0.71 0.88 M5 x 0.8P 2.9
27.651.55.354 SBT50 x SFC5/16" - 3.54" 7.55 1.42 1.62 0.79 1.02 M6 x 1.0P 3
27.651.56.354 SBT50 x SFC3/8" - 3.54" 7.55 1.53 1.67 0.94 1.12 M8 x 1.25P 3
27.651.58.354 SBT50 x SFC1/2" - 3.54" 7.55 1.85 1.62 1.1 1.34 M10 x 1.5P 3
27.651.64.354 SBT50 x SFC3/4" - 3.54" 7.55 1.97 1.85 1.26 1.34 M16 x 2.0P 3
27.651.68.394 SBT50 x SFC1" - 3.94" 7.94 2.04 2.24 1.79 1.93 M20 x 2.0P 3.2
