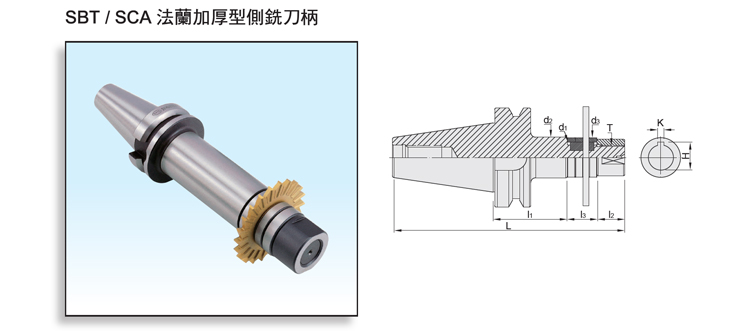

Product Name : DualDRIVE+ SBT Side Cutter Adapter
Product Introduction
  • Nut standard: DIN-2082-I
  • Bush standard: DIN-2084-B



MODEL NO.TYPE (d1 - l1)Ll2l3d2d3KHTWEIGHT (KGS)
25.649.10.060 SBT30 x SCA10 - 60 155.4 12 35 18 18 - - M8 x 1.25P 0.8
25.649.16.060 SBT30 x SCA16 - 60 154.4 16 30 26 26 4 17.7 M14 x 1.5P 1
25.649.22.060 SBT30 x SCA22 - 60 160.4 22 30 34 34 6 24.3 M20 x 1.5P 1.2
25.649.22.075 SBT30 x SCA22 - 75 175.4 22 30 34 34 6 24.3 M20 x 1.5P 1.4
26.649.16.060 SBT40 x SCA16 - 60 171.4 16 30 26 26 4 17.7 M14 x 1.5P 1.5
26.649.22.060 SBT40 x SCA22 - 60 177.4 22 30 34 34 6 24.3 M20 x 1.5P 1.6
26.649.22.075 SBT40 x SCA22 - 75 192.4 22 30 34 34 6 24.3 M20 x 1.5P 1.7
26.649.22.120 SBT40 x SCA22 - 120 237.4 22 30 34 34 6 24.3 M20 x 1.5P 2
26.649.27.075 SBT40 x SCA27 - 75 198.4 28 30 41 40 7 30 M24 x 1.5P 2.1
26.649.27.120 SBT40 x SCA27 - 120 243.4 28 30 41 40 7 30 M24 x 1.5P 2.5
26.649.32.090 SBT40 x SCA32 - 90 217.4 32 30 47 47 8 35 M30 x 1.5P 2.6
26.649.66.075 SBT40 x SCA22.22 - 75 192.4 22 30 34 34 3.18 24.6 M20 x 1.5P 1.7
26.649.66.120 SBT40 x SCA22.22 - 120 237.4 22 30 34 34 3.18 24.6 M20 x 1.5P 2
26.649.68.075 SBT40 x SCA25.40 - 75 198.4 28 30 41 40 6.35 28.4 M24 x 1.5P 2
26.649.68.120 SBT40 x SCA25.40 - 120 243.4 28 30 41 40 6.35 28.4 M24 x 1.5P 2.4
26.649.72.090 SBT40 x SCA31.75 - 90 217.4 32 30 47 47 7.93 34.8 M30 x 1.5P 2.6
27.649.22.090 SBT50 x SCA22 - 90 243.8 22 30 34 34 6 24.3 M20 x 1.5P 4.4
27.649.22.135 SBT50 x SCA22 - 135 288.8 22 30 34 34 6 24.3 M20 x 1.5P 4.7
27.649.27.090 SBT50 x SCA27 - 90 249.8 28 30 41 40 7 30 M24 x 1.5P 4.6
27.649.27.135 SBT50 x SCA27 - 135 294.8 28 30 41 40 7 30 M24 x 1.5P 5
27.649.32.090 SBT50 x SCA32 - 90 253.8 32 30 47 47 8 35 M30 x 1.5P 4.7
27.649.32.135 SBT50 x SCA32 - 135 298.8 32 30 47 47 8 35 M30 x 1.5P 5.2
27.649.40.090 SBT50 x SCA40 - 90 261.8 40 30 55 55 10 43.7 M36 x 2.0P 5
27.649.40.135 SBT50 x SCA40 - 135 306.8 40 30 55 55 10 43.7 M36 x 2.0P 6
27.649.66.090 SBT50 x SCA22.22 - 90 243.8 22 30 34 34 3.18 24.6 M20 x 1.5P 4.4
27.649.66.135 SBT50 x SCA22.22 - 135 288.8 22 30 34 34 3.18 24.6 M20 x 1.5P 4.7
27.649.68.090 SBT50 x SCA25.4 - 90 249.8 28 30 41 40 6.35 28.4 M24 x 1.5P 4.5
27.649.68.135 SBT50 x SCA25.4 - 135 294.8 28 30 41 40 6.35 28.4 M24 x 1.5P 4.9
27.649.72.090 SBT50 x SCA31.75 - 90 253.8 32 30 47 47 7.93 34.8 M30 x 1.5P 4.7
27.649.72.135 SBT50 x SCA31.75 - 135 298.8 32 30 47 47 7.93 34.8 M30 x 1.5P 5.2
27.649.77.090 SBT50 x SCA38.1 - 90 261.8 40 30 55 55 9.525 42.4 M36 x 2.0P 4.9
27.649.77.135 SBT50 x SCA38.1 - 135 306.8 40 30 55 55 9.525 42.4 M36 x 2.0P 5.9
