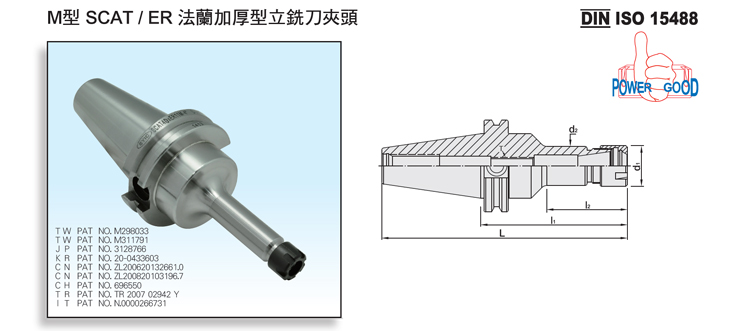

Product Name : DualDRIVE+ SCAT/ER Collet Chuck M Type
Product Introduction
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
43.123.11.275 SCAT40 x ER11M - 2.75" 5.447 1.175 0.63 0.59 M6 x 1.0P 0.0625 ~ 0.250 1.1
43.123.11.400 SCAT40 x ER11M - 4" 6.687 2.228 0.63 0.59 M6 x 1.0P 0.0625 ~ 0.250 1.2
43.123.16.276 SCAT40 x ER16M - 2.76" 5.447 1.322 0.87 0.83 M10 x 1.5P 0.0625 ~ 0.375 1.2
43.123.16.400 SCAT40 x ER16M - 4" 6.687 2.425 0.87 0.83 M10 x 1.5P 0.0625 ~ 0.375 1.3
43.123.20.276 SCAT40 x ER20M - 2.76" 5.447 1.323 1.102 1.06 M12 x 1.75P 0.0625 ~ 0.500 1.2
43.123.20.400 SCAT40 x ER20M - 4" 6.687 2.197 1.102 1.06 M12 x 1.75P 0.0625 ~ 0.500 1.5
44.123.16.400 SCAT50 x ER16M - 4" 8 1.927 0.87 0.83 M10 x 1.5P 0.0625 ~ 0.375 3.9
44.123.16.600 SCAT50 x ER16M - 6" 10 4.009 0.87 0.83 M10 x 1.5P 0.0625 ~ 0.375 4
44.123.20.400 SCAT50 x ER20M - 4" 8 2.127 1.102 1.06 M12 x 1.75P 0.0625 ~ 0.500 4.2
44.123.20.600 SCAT50 x ER20M - 6" 10 4.127 1.102 1.06 M12 x 1.75P 0.0625 ~ 0.500 5.2
