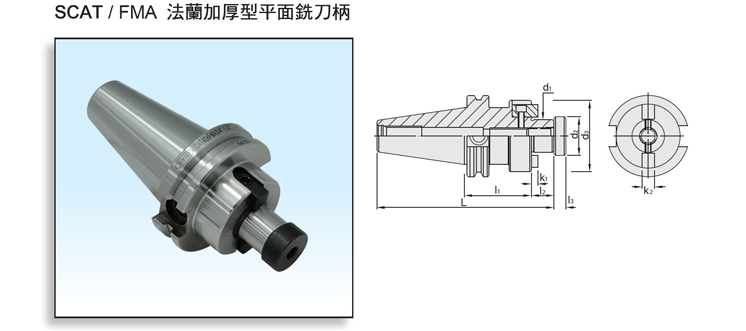

Product Name : DualDRIVE+ SCAT Face Mill Arbor
Product Introduction
  • d1 tolerance : h6.
  • Tolerance of 7/24 taper : AT3.
  • The pre-balance can reach G6.3 3,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1Ll2l3d2d3K1K2WEIGHT (KGS)
43.151.64.137 SCAT40 x FMA3/4" - 1.37" 4.744 0.687 0.512 0.925 1.69 0.188 0.3125 1.5
43.151.64.400 SCAT40 x FMA3/4" - 4" 7.374 0.687 0.512 0.925 1.69 0.188 0.3125 1.7
43.151.64.600 SCAT40 x FMA3/4" - 6" 9.374 0.687 0.512 0.925 1.69 0.188 0.3125 1.9
43.151.68.206 SCAT40 x FMA1" - 2.06" 5.434 0.687 0.63 1.24 2.19 0.188 0.375 1.5
43.151.68.400 SCAT40 x FMA1" - 4" 7.374 0.687 0.63 1.24 2.19 0.188 0.375 2.55
43.151.68.600 SCAT40 x FMA1" - 6" 9.374 0.687 0.63 1.24 2.19 0.188 0.375 2.75
43.151.72.221 SCAT40 x FMA1-1/4" - 2.21" 5.584 0.687 0.63 1.614 2.75 0.25 0.5 2.6
43.151.72.400 SCAT40 x FMA1-1/4" - 4" 7.374 0.687 0.63 1.614 2.75 0.25 0.5 2.75
43.151.72.600 SCAT40 x FMA1-1/4" - 6" 9.374 0.687 0.63 1.614 2.75 0.25 0.5 2.95
43.151.77.221 SCAT40 x FMA1-1/2" - 2.21" 5.584 0.938 0.807 1.752 3.81 0.349 0.625 2.7
43.151.77.400 SCAT40 x FMA1-1/2" - 4" 7.627 0.938 0.807 1.752 3.81 0.349 0.625 2.95
44.151.64.150 SCAT50 x FMA3/4" - 1.5" 6.187 0.687 0.512 0.925 1.69 0.188 0.3125 4.2
44.151.64.350 SCAT50 x FMA3/4" - 3.5" 8.187 0.687 0.512 0.925 1.69 0.188 0.3125 4.4
44.151.64.550 SCAT50 x FMA3/4" - 5.5" 10.187 0.687 0.512 0.925 1.69 0.188 0.3125 4.6
44.151.68.200 SCAT50 x FMA1" - 2" 6.687 0.687 0.63 1.24 2.19 0.188 0.375 4.5
44.151.68.400 SCAT50 x FMA1" - 4" 8.687 0.687 0.63 1.24 2.19 0.188 0.375 4.7
44.151.68.600 SCAT50 x FMA1" - 6" 10.687 0.687 0.63 1.24 2.19 0.188 0.375 4.9
44.151.72.150 SCAT50 x FMA1-1/4" - 1.5" 6.187 0.687 0.63 1.614 2.75 0.25 0.5 4.7
44.151.72.350 SCAT50 x FMA1-1/4" - 3.5" 8.187 0.687 0.63 1.614 2.75 0.25 0.5 4.8
44.151.72.500 SCAT50 x FMA1-1/4" - 5" 9.687 0.687 0.63 1.614 2.75 0.25 0.5 5
44.151.72.600 SCAT50 x FMA1-1/4" - 6" 10.687 0.687 0.63 1.614 2.75 0.25 0.5 5.1
44.151.77.240 SCAT50 x FMA1-1/2" - 2.4" 7.388 0.938 0.807 1.752 3.81 0.349 0.625 5
44.151.77.400 SCAT50 x FMA1-1/2" - 4" 8.988 0.938 0.807 1.752 3.81 0.349 0.625 5.2
44.151.77.600 SCAT50 x FMA1-1/2" - 6" 10.988 0.938 0.807 1.752 3.81 0.349 0.625 5.4
44.151.86.240 SCAT50 x FMA2" - 2.4" 7.388 0.938 0.807 2.5 4.88 0.384 0.75 5.4
44.151.86.400 SCAT50 x FMA2" - 4" 8.988 0.938 0.807 2.5 4.88 0.384 0.75 5.6
