Product Name : DualDRIVE+ SCAT Morse Taper Adapter
Product Introduction
  • High accurate working process. Even though using prolonged drill, the concentricity is still within 0.015mm.

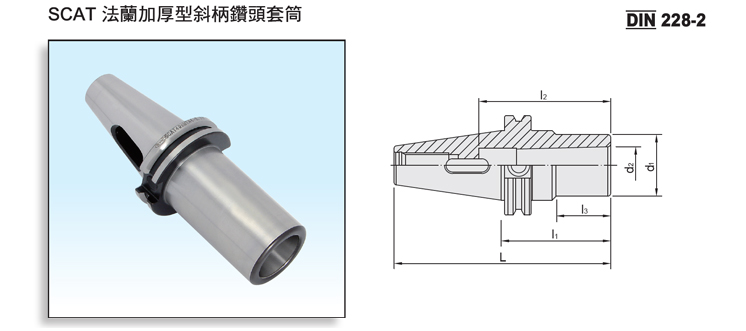

MODEL NO.TYPE - l1Ll2l3d1d2WEIGHT (KGS)
43.465.01.160 SCAT40 x MTA1 - 1.6" 4.287 2.205 0.12 1 0.475 1.3
43.465.02.200 SCAT40 x MTA2 - 2" 4.687 2.638 0.32 1.25 0.7 1.5
43.465.03.275 SCAT40 x MTA3 - 2.75" 5.437 3.307 1.29 1.55 0.938 1.14
43.465.04.375 SCAT40 x MTA4 - 3.75" 6.437 4.213 2.37 1.75 1.23 1.2
44.465.01.200 SCAT50 x MTA1 - 2" 6 2.205 0.13 1 0.475 4.05
44.465.02.200 SCAT50 x MTA2 - 2" 6 2.638 0.5 1.25 0.7 4.4
44.465.03.250 SCAT50 x MTA3 - 2.5" 6 3.307 1 1.55 0.938 4.5
44.465.04.330 SCAT50 x MTA4 - 3.3" 7.3 4.213 1.8 1.75 1.23 4.9
44.465.05.410 SCAT50 x MTA5 - 4.1" 8.1 5.236 2.59 2.48 1.748 5.15
