Product Name : DualDRIVE+ SCAT/SBL Slim-Fit Collet Chuck
Product Introduction
  • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.

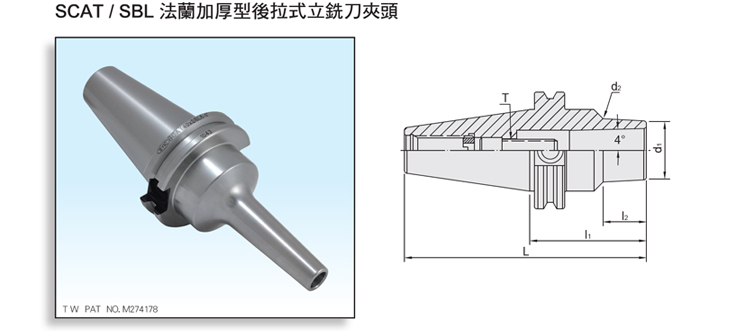

MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
43.648.06.300 SCAT40 x SBL6 - 3" 5.687 1.09 0.551 0.65 M6 x 1.0P 0.125 ~ 0.25 1.00
43.648.06.400 SCAT40 x SBL6 - 4" 6.687 2.12 0.551 0.74 M6 x 1.0P 0.125 ~ 0.25 1.25
43.648.06.600 SCAT40 x SBL6 - 6" 8.687 4.17 0.551 0.92 M6 x 1.0P 0.125 ~ 0.25 1.20
43.648.12.250 SCAT40 x SBL12 - 2.5" 5.187 0.82 1.024 1.15 M10 x 1.5P 0.125 ~ 0.50 1.45
43.648.12.400 SCAT40 x SBL12 - 4" 6.687 2.23 1.024 1.26 M10 x 1.5P 0.125 ~ 0.50 1.20
43.648.12.600 SCAT40 x SBL12 - 6" 8.687 4.49 1.024 1.49 M10 x 1.5P 0.125 ~ 0.50 1.45
43.648.20.250 SCAT40 x SBL20 - 2.5" 5.187 0.98 1.378 1.46 M12 x 1.75P 0.125 ~ 0.75 1.20
43.648.20.400 SCAT40 x SBL20 - 4" 6.687 2.55 1.378 1.6 M12 x 1.75P 0.125 ~ 0.75 1.60
43.648.20.600 SCAT40 x SBL20 - 6" 8.687 4.62 1.378 - M12 x 1.75P 0.125 ~ 0.75 1.50
43.648.25.325 SCAT40 x SBL25 - 3.25'' 5.937 1.86 1.73 1.575 M16 x 2.0P 0.125 ~ 1.00 1.40
43.648.25.400 SCAT40 x SBL25 - 4'' 6.687 2.598 1.75 1.575 M16 x 2.0P 0.125 ~ 1.00 1.60
44.648.06.350 SCAT50 x SBL6 - 3.5" 7.5 1.56 0.551 0.71 M6 x 1.0P 0.125 ~ 0.25 1.70
44.648.06.450 SCAT50 x SBL6 - 4.5" 8.5 2.38 0.551 0.8 M6 x 1.0P 0.125 ~ 0.25 1.50
44.648.06.600 SCAT50 x SBL6 - 6" 10 3.96 0.551 0.97 M6 x 1.0P 0.125 ~ 0.25 1.70
44.648.12.250 SCAT50 x SBL12 - 2.5" 6.5 0.93 1.024 1.11 M10 x 1.5P 0.125 ~ 0.50 4.00
44.648.12.450 SCAT50 x SBL12 - 4.5" 8.5 2.75 1.024 1.27 M10 x 1.5P 0.125 ~ 0.50 4.10
44.648.12.450 SCAT50 x SBL12 - 6" 10 4.25 1.024 1.4 M10 x 1.5P 0.125 ~ 0.50 4.20
44.648.20.250 SCAT50 x SBL20 - 2.5" 6.5 0.75 1.378 1.44 M12 x 1.75P 0.125 ~ 0.75 4.30
44.648.20.450 SCAT50 x SBL20 - 4.5" 8.5 2.75 1.378 1.62 M12 x 1.75P 0.125 ~ 0.75 4.60
44.648.20.600 SCAT50 x SBL20 - 6" 10 4.12 1.378 1.74 M12 x 1.75P 0.125 ~ 0.75 4.70
44.648.25.275 SCAT50 x SBL25 - 2.75'' 6.75 1.33 1.69 1.575 M16 x 2.0P 0.125 ~ 1.00 4.40
44.648.25.450 SCAT50 x SBL25 - 4.5'' 8.5 3.06 1.84 1.575 M16 x 2.0P 0.125 ~ 1.00 4.60
