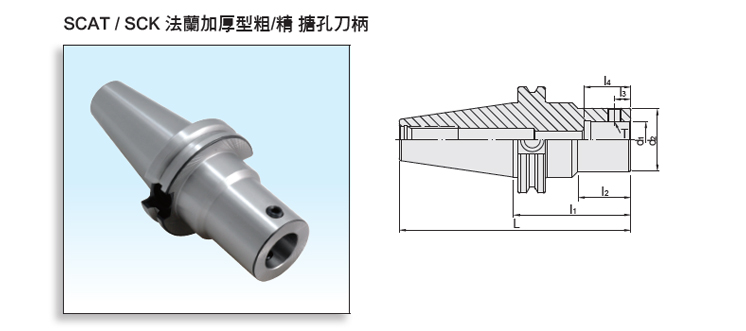

Product Name : DualDRIVE+ SCAT/SCK Boring Head Shank
Product Introduction
  • Can be used with SYIC-17550 Extension Spacer, more convenient for machining.
  • Internal tolerance is H6.



INCHES

MODEL NO.TYPE - l1Ll2l3l4d1d2TWEIGHT (KGS)
43.650.02.300 SCAT40 x SCK2 - 3" 5.687 1.39 0.261 0.728 0.551 0.925 M5 x 0.8P 1.3
43.650.02.435 SCAT40 x SCK2 - 4.35" 7.037 2.626 0.261 0.728 0.551 0.925 M5 x 0.8P 1.35
43.650.03.300 SCAT40 x SCK3 - 3" 5.687 1.356 0.315 0.866 0.709 1.22 M6 x 1.0P 1.4
43.650.03.500 SCAT40 x SCK3 - 5" 7.687 3.356 0.315 0.866 0.709 1.22 M6 x 1.0P 1.45
43.650.04.300 SCAT40 x SCK4 - 3" 5.687 1.515 0.394 0.945 0.866 1.535 M8 x 1.25P 1.5
43.650.04.425 SCAT40 x SCK4 - 4.25" 6.937 2.765 0.394 0.945 0.866 1.535 M8 x 1.25P 1.55
43.650.05.300 SCAT40 x SCK5 - 3" 5.687 1.513 0.512 1.181 1.102 1.969 M10 x 1.5P 1.6
43.650.05.425 SCAT40 x SCK5 - 4.25" 6.937 2.763 0.512 1.181 1.102 1.969 M10 x 1.5P 1.65
43.650.06.300 SCAT40 x SCK6 - 3" 5.687 1.622 0.63 1.575 1.417 2.48 M12 x 1.75P 1.7
43.650.06.425 SCAT40 x SCK6 - 4.25" 6.937 2.872 0.63 1.575 1.417 2.48 M12 x 1.75P 1.75
44.650.02.350 SCAT50 x SCK2 - 3.5" 7.5 1.368 0.261 0.728 0.551 0.925 M5 x 0.8P 3.4
44.650.02.530 SCAT50 x SCK2 - 5.3" 9.3 3.167 0.261 0.728 0.551 0.925 M5 x 0.8P 3.45
44.650.03.350 SCAT50 x SCK3 - 3.5" 7.5 1.453 0.315 0.866 0.709 1.22 M6 x 1.0P 3.5
44.650.03.550 SCAT50 x SCK3 - 5.5" 9.5 3.453 0.315 0.866 0.709 1.22 M6 x 1.0P 3.55
44.650.04.350 SCAT50 x SCK4 - 3.5" 7.5 1.544 0.394 0.945 0.866 1.535 M8 x 1.25P 3.6
44.650.04.550 SCAT50 x SCK4 - 5.5" 9.5 3.544 0.394 0.945 0.866 1.535 M8 x 1.25P 3.65
44.650.05.350 SCAT50 x SCK5 - 3.5" 7.5 1.669 0.512 1.181 1.102 1.969 M10 x 1.5P 3.7
44.650.05.550 SCAT50 x SCK5 - 5.5" 9.5 3.669 0.512 1.181 1.102 1.969 M10 x 1.5P 3.75
44.650.06.350 SCAT50 x SCK6 - 3.5" 7.5 1.987 0.63 1.575 1.417 2.48 M12 x 1.75P 3.8
44.650.06.550 SCAT50 x SCK6 - 5.5" 9.5 3.987 0.63 1.575 1.417 2.48 M12 x 1.75P 3.85
