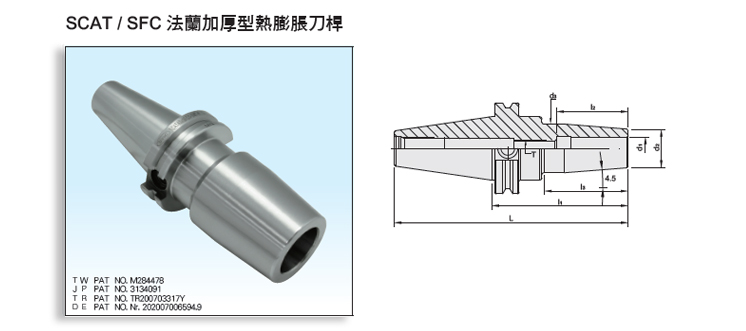

Product Name : DualDRIVE+ SCAT/SFC Shrink Fit Chuck
Product Introduction
  • High rigidity.
  • T.I.R. : within 5 μ.
  • Slim design.
  • Easy handling.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1Ll2l3d2d3TWEIGHT (KGS)
43.651.52.350 SCAT40 x SFC1/8" - 3.5" 6.187 0.79 1.76 0.36 0.64 M6 x 1.0P 1
43.651.52.500 SCAT40 x SFC1/8" - 5" 7.687 0.79 3.56 0.36 0.87 - 1.1
43.651.53.350 SCAT40 x SFC3/16" - 3.5" 6.187 0.79 1.76 0.43 0.7 M6 x 1.0P 1.1
43.651.53.500 SCAT40 x SFC3/16" - 5" 7.687 0.79 3.23 0.43 0.71 - 1.2
43.651.54.300 SCAT40 x SFC1/4" - 3" 5.687 1.42 1.56 0.71 0.95 M5 x 0.8P 1.2
43.651.54.350 SCAT40 x SFC1/4" - 3.5" 6.187 1.42 2 0.71 0.95 M5 x 0.8P 1.2
43.651.54.500 SCAT40 x SFC1/4" - 5" 7.687 1.42 3.12 0.71 1.06 M5 x 0.8P 1.4
43.651.54.600 SCAT40 x SFC1/4" - 6" 8.687 1.42 4.44 0.71 1.38 M5 x 0.8P 1.4
43.651.55.350 SCAT40 x SFC5/16" - 3.5" 6.187 1.42 2.06 0.78 1.06 M6 x 1.0P 1.2
43.651.55.500 SCAT40 x SFC5/16" - 5" 7.687 1.42 3.12 0.78 1.06 M6 x 1.0P 1.4
43.651.56.300 SCAT40 x SFC3/8" - 3" 5.687 1.53 1.56 0.94 1.18 M8 x 1.25P 1.4
43.651.56.375 SCAT40 x SFC3/8" - 3.75" 6.437 1.53 2.31 0.94 1.26 M8 x 1.25P 1.4
43.651.56.500 SCAT40 x SFC3/8" - 5" 7.687 1.53 3.28 0.94 1.38 M8 x 1.25P 1.5
43.651.56.600 SCAT40 x SFC3/8" - 6" 8.687 1.53 4.44 0.94 1.38 M8 x 1.25P 1.6
43.651.58.300 SCAT40 x SFC1/2" - 3" 5.687 1.85 1.56 1.1 1.34 M10 x 1.5P 1.6
43.651.58.375 SCAT40 x SFC1/2" - 3.75" 6.437 1.85 2.31 1.1 1.34 M10 x 1.5P 1.7
43.651.58.500 SCAT40 x SFC1/2" - 5" 7.687 1.85 3.44 1.1 1.38 M10 x 1.5P 1.8
43.651.58.600 SCAT40 x SFC1/2" - 6" 8.687 1.85 4.36 1.1 1.38 M10 x 1.5P 1.8
43.651.61.375 SCAT40 x SFC5/8" - 3.75" 6.437 1.97 2.17 1.06 1.34 M12 x 1.75P 1.8
43.651.64.300 SCAT40 x SFC3/4" - 3" 5.687 2.04 1.62 1.42 1.65 M16 x 2.0P 1.8
43.651.64.400 SCAT40 x SFC3/4" - 4" 6.687 2.04 2.62 1.42 1.65 M16 x 2.0P 1.9
43.651.64.500 SCAT40 x SFC3/4" - 5" 7.687 2.04 3.44 1.42 1.38 M16 x 2.0P 2
43.651.64.600 SCAT40 x SFC3/4" - 6" 8.687 2.04 4.44 1.42 1.38 M16 x 2.0P 2.1
43.651.68.300 SCAT40 x SFC1" - 3" 5.687 2.28 1.47 1.81 2.04 M20 x 2.0P 1.9
43.651.68.400 SCAT40 x SFC1" - 4" 6.687 2.28 2.45 1.81 2.09 M20 x 2.0P 2
43.651.68.600 SCAT40 x SFC1" - 6" 8.687 2.28 4.37 1.81 2.09 M20 x 2.0P 2.1
43.651.72.400 SCAT40 x SFC1-1/4" - 4" 6.687 2.28 2.45 1.81 2.09 M20 x 2.0P 2.1
