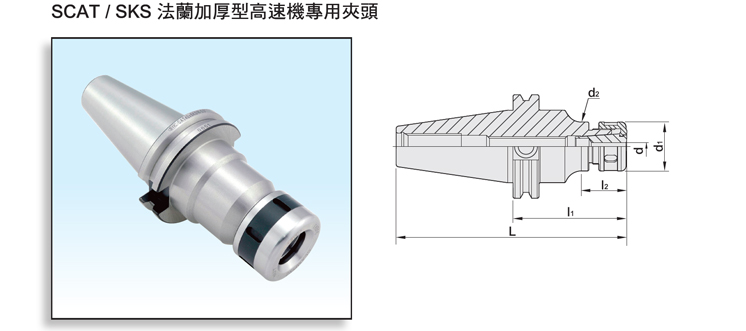

Product Name : DualDRIVE+ SCAT/SKS Collet Chuck
Product Introduction
  • Runout is within 5μ (4D length).
  • SKS Collet taper : 4°, increasing holding power, concentricity and rigidity.
  • Every tool holder reaches revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ll2dd1d2TWEIGHT (KGS)
43.658.06.350 SCAT40 x SKS6 - 3.5" 6.187 1.43 0.125 ~ 0.250 0.709 0.7 M8 x 1.25P 1.05
43.658.06.400 SCAT40 x SKS6 - 4" 6.687 1.93 0.125 ~ 0.250 0.709 0.7 M8 x 1.25P 1.65
43.658.10.350 SCAT40 x SKS10 - 3.5" 6.187 1.62 0.125 ~ 0.375 1.181 1.08 M12 x 1.75P 1.05
43.658.10.400 SCAT40 x SKS10 - 4" 6.687 2.12 0.125 ~ 0.375 1.181 1.08 M12 x 1.75P 1.65
43.658.13.350 SCAT40 x SKS13 - 3.5" 6.187 2 0.125 ~ 0.500 1.378 1.29 M12 x 1.75P 1.05
43.658.13.400 SCAT40 x SKS13 - 4" 6.687 2.5 0.125 ~ 0.500 1.378 1.29 M12 x 1.75P 1.65
43.658.16.350 SCAT40 x SKS16 - 3.5" 6.187 2.03 0.125 ~ 0.625 1.574 1.57 M18 x 1.5P 1.35
43.658.16.400 SCAT40 x SKS16 - 4" 6.687 2.53 0.125 ~ 0.625 1.574 1.57 M18 x 1.5P 2.1
43.658.20.350 SCAT40 x SKS20 - 3.5" 6.187 2.04 0.125 ~ 0.750 1.909 1.9 M22 x 1.5P 1.35
43.658.20.400 SCAT40 x SKS20 - 4" 6.687 2.54 0.125 ~ 0.750 1.909 1.9 M22 x 1.5P 2.2
43.658.25.350 SCAT40 x SKS25 - 3.5" 6.187 2.08 0.125 ~ 1.000 2.169 2.16 M28 x 2.0P 1.35
43.658.25.400 SCAT40 x SKS25 - 4" 6.687 2.58 0.125 ~ 1.000 2.169 2.16 M28 x 2.0P 2.2
44.658.06.350 SCAT50 x SKS6 - 3.5" 7.5 1.72 0.125 ~ 0.250 0.709 0.7 M8 x 1.25P 3.6
44.658.06.400 SCAT50 x SKS6 - 4" 8 2.22 0.125 ~ 0.250 0.709 0.7 M8 x 1.25P 4
44.658.10.400 SCAT50 x SKS10 - 4" 8 2.22 0.125 ~ 0.375 1.181 1.06 M12 x 1.75P 3.8
44.658.10.450 SCAT50 x SKS10 - 4.5" 8.5 2.11 0.125 ~ 0.375 1.181 1.06 M12 x 1.75P 4
44.658.13.400 SCAT50 x SKS13 - 4" 8 2.11 0.125 ~ 0.500 1.378 1.29 M12 x 1.75P 3.8
44.658.13.450 SCAT50 x SKS13 - 4.5" 8.5 3.24 0.125 ~ 0.500 1.378 1.29 M12 x 1.75P 4
44.658.16.400 SCAT50 x SKS16 - 4" 8 2.05 0.125 ~ 0.625 1.574 1.57 M18 x 1.5P 4
44.658.16.450 SCAT50 x SKS16 - 4.5" 8.5 2.55 0.125 ~ 0.625 1.574 1.57 M18 x 1.5P 4.15
44.658.20.400 SCAT50 x SKS20 - 4" 8.5 2.5 0.125 ~ 0.750 1.909 1.9 M22 x 1.5P 4
44.658.20.450 SCAT50 x SKS20 - 4.5" 8.5 3 0.125 ~ 0.750 1.909 1.9 M22 x 1.5P 4.15
44.658.25.400 SCAT50 x SKS25 - 4" 8 2.16 0.125 ~ 1.000 2.169 2.16 M28 x 2.0P 4.2
44.658.25.450 SCAT50 x SKS25 - 4.5" 8.5 2.66 0.125 ~ 1.000 2.169 2.16 M28 x 2.0P 4.4
