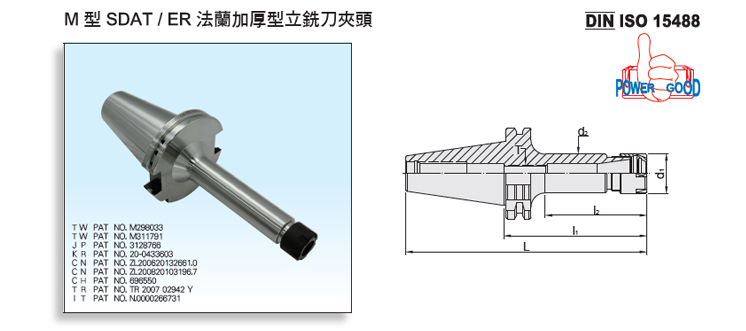

Product Name : DualDRIVE+ SDAT/ER Collet Chuck M Type
Product Introduction
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
66.123.11.070 SDAT40 x ER11M - 70 138.4 40 16 15 M6 x 1.0P 1.0 ~ 7 1.1
66.123.11.100 SDAT40 x ER11M - 100 168.4 70 16 15 M6 x 1.0P 1.0 ~ 7 1.2
66.123.11.125 SDAT40 x ER11M - 125 193.4 95 16 15 M6 x 1.0P 1.0 ~ 7 1.4
66.123.11.150 SDAT40 x ER11M - 150 218.4 120 16 15 M6 x 1.0P 1.0 ~ 7 1.5
66.123.16.070 SDAT40 x ER16M - 70 138.4 40 22 21 M10 x 1.5P 1.0 ~ 10 1.2
66.123.16.100 SDAT40 x ER16M - 100 168.4 70 22 21 M10 x 1.5P 1.0 ~ 10 1.3
66.123.16.125 SDAT40 x ER16M - 125 193.4 95 22 21 M10 x 1.5P 1.0 ~ 10 1.5
66.123.16.150 SDAT40 x ER16M - 150 218.4 120 22 21 M10 x 1.5P 1.0 ~ 10 1.6
66.123.20.070 SDAT40 x ER20M - 70 138.4 40 28 27 M12 x 1.75P 1.0 ~ 13 1.2
66.123.20.100 SDAT40 x ER20M - 100 168.4 70 28 27 M12 x 1.75P 1.0 ~ 13 1.55
66.123.20.125 SDAT40 x ER20M - 125 193.4 95 28 27 M12 x 1.75P 1.0 ~ 13 1.7
66.123.20.150 SDAT40 x ER20M - 150 218.4 120 28 27 M12 x 1.75P 1.0 ~ 13 1.8
67.123.11.070 SDAT50 x ER11M - 70 171.75 40 16 15 M6 x 1.0P 1.0 ~ 7 3.8
67.123.11.090 SDAT50 x ER11M - 90 191.75 60 16 15 M6 x 1.0P 1.0 ~ 7 3.9
67.123.11.105 SDAT50 x ER11M - 105 206.75 56 16 15 M6 x 1.0P 1.0 ~ 7 4
67.123.11.135 SDAT50 x ER11M - 135 236.75 86 16 15 M6 x 1.0P 1.0 ~ 7 4.1
67.123.11.165 SDAT50 x ER11M - 165 266.75 94 16 15 M6 x 1.0P 1.0 ~ 7 4.2
67.123.16.070 SDAT50 x ER16M - 70 171.75 40 22 21 M10 x 1.5P 1.0 ~ 10 3.9
67.123.16.090 SDAT50 x ER16M - 90 191.75 60 22 21 M10 x 1.5P 1.0 ~ 10 4
67.123.16.105 SDAT50 x ER16M - 105 206.75 68 22 21 M10 x 1.5P 1.0 ~ 10 4.1
67.123.16.135 SDAT50 x ER16M - 135 236.75 98 22 21 M10 x 1.5P 1.0 ~ 10 4.2
67.123.16.165 SDAT50 x ER16M - 165 266.75 128 22 21 M10 x 1.5P 1.0 ~ 10 4.3
67.123.20.090 SDAT50 x ER20M - 90 191.75 60 28 27 M12 x 1.75P 1.0 ~ 13 4.1
67.123.20.105 SDAT50 x ER20M - 105 206.75 71 28 27 M12 x 1.75P 1.0 ~ 13 4.2
67.123.20.135 SDAT50 x ER20M - 135 236.75 101 28 27 M12 x 1.75P 1.0 ~ 13 4.4
67.123.20.165 SDAT50 x ER20M - 165 266.75 131 28 27 M12 x 1.75P 1.0 ~ 13 4.6
