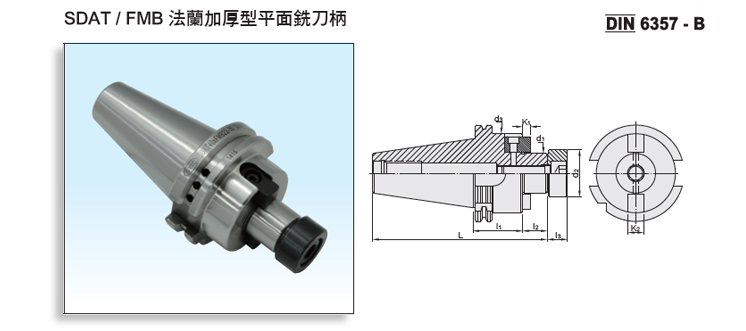

Product Name : DualDRIVE+ SDAT Face Mill Arbor Type Fmb
Product Introduction
  • d1 tolerance : h6.
  • Tolerance of 7/24 taper : AT3.
  • The pre-balance can reach G6.3 3 ,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1Ll2l3d2d3K1K2WEIGHT (KGS)
66.153.22.035 SDAT40 x FMB22 - 35 122.4 19 14 26 48 4.8 10 1.2
66.153.27.060 SDAT40 x FMB27 - 60 148.4 20 16 31.5 58 5.8 12 1.8
66.153.32.060 SDAT40 x FMB32 - 60 150.4 22 16 41 66 6.8 14 2.3
66.153.40.060 SDAT40 x FMB40 - 60 153.4 25 20.5 48 80 8.3 16 2.8
67.153.22.035 SDAT50 x FMB22 - 35 155.75 19 14 26 48 4.8 10 3.4
67.153.27.035 SDAT50 x FMB27 - 35 156.75 20 16 31.5 58 5.8 12 3.5
67.153.32.035 SDAT50 x FMB32 - 35 158.75 22 16 41 66 6.8 14 3.7
67.153.40.050 SDAT50 x FMB40 - 50 176.75 25 20.5 48 80 8.3 16 4.7
67.153.50.060 SDAT50 x FMB50 - 60 191.75 30 25 68 95 9.7 19 5.8
