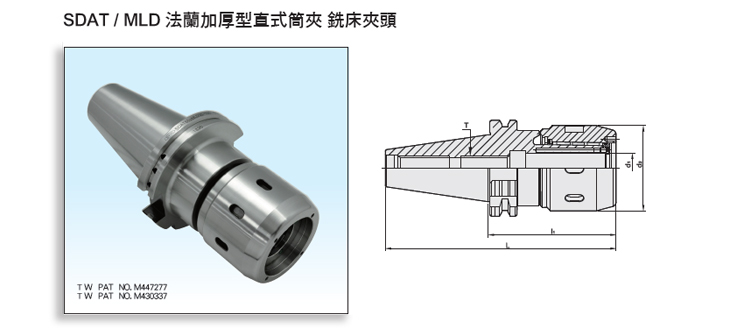

Product Name : DualDRIVE+ SDAT/MLD Multi-Lock Milling Chuck
Product Introduction
  • There is a special design for the slots of internal hole. It prevents the cutting tools from slipping and increases the clamping power.
  • The body of the tool holder is thick, so it has good clamping power. It adopts the needle bearing design to prevent the slipping. The operation is convenient and easy.
  • After locking the cutting tool (The tolerance of the cutting tool must be less than h6), it is more contacted with the flange while locking the clamping nut and tool holder. It can prevent the bearing cage from deformation easily. Also, rigidity and dust-proof function is improved.
  • High stability of the precision and easy for combination. There won’t be a situation of vibration during the high speed processing or big cutting depth.
  • Good clamping power. The clamping power of MLD32 type is around 1000 N-m.
  • Run-out: Within 0.001~0.005mm.
  • Concentricity: 0.02mm.
  • The pre-balance can reach G6.3 8,000RPM, with an inspection report. The balancing grade and revolution can be done according to

  • When using MLD sealed cap, the coolant fluid discharges from the cutting tool.It's good for heat dissipation and metal chips removal.

  • The design of coolant grooves improves the cooling and metal chips removal capability.



MODEL NO.TYPELl1d1d2TWEIGHT (KGS)
66.463G.12.075 SDAT40 x MLD12 - 75 143.4 75 12 42 M12 x 1.75P 2.1
66.463G.16.080 SDAT40 x MLD16 - 80 148.4 80 16 48 M12 x 1.75P 2.2
66.463G.20.085 SDAT40 x MLD20 - 85 153.4 85 20 56.5 M16 x 2.0P 2.4
66.463G.20.135 SDAT40 x MLD20 - 135 203.4 135 20 56.5 M16 x 2.0P 2.5
66.463G.25.095 SDAT40 x MLD25 - 95 163.4 95 25 60 M16 x 2.0P 2
66.463G.32.105 SDAT40 x MLD32 - 105 173.4 105 32 71 M16 x 2.0P 2.7
66.463G.32.135 SDAT40 x MLD32 - 135 203.4 135 32 71 M16 x 2.0P 3
67.463G.12.075 SDAT50 x MLD12 - 75 176.75 75 12 42 M12 x 1.75P 3.2
67.463G.16.075 SDAT50 x MLD16 - 75 176.75 75 16 48 M12 x 1.75P 3.2
67.463G.20.105 SDAT50 x MLD20 - 105 206.75 105 20 56.5 M24 x 3.0P 4.5
67.463G.20.150 SDAT50 x MLD20 - 150 251.75 150 20 56.5 M16 x 2.0P 4.9
67.463G.25.105 SDAT50 x MLD25 - 105 206.75 105 25 60 M16 x 2.0P 4.1
67.463G.32.105 SDAT50 x MLD32 - 105 206.75 105 32 71 M24 x 3.0P 5.1
67.463G.32.135 SDAT50 x MLD32 - 135 236.75 135 32 71 M16 x 2.0P 5.9
67.463G.42.115 SDAT50 x MLD42 - 115 216.75 115 42 90 M24 x 3.0P 5
