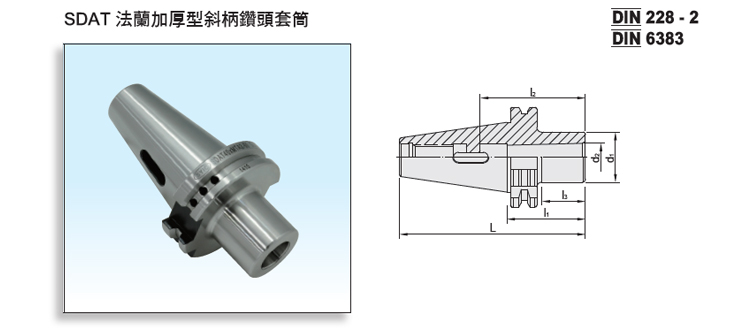

Product Name : DualDRIVE+ SDAT Morse Taper Adapter
Product Introduction
  • High accurate working process. Even though using prolonged drill, the concentricity is still within 0.015mm.



MODEL NO.TYPE - l1Ll2l3d1d2WEIGHT (KGS)
66.465.01.050 SDAT40 x MTA1 - 50 118.4 56 22 25 12.065 1.2
66.465.02.050 SDAT40 x MTA2 - 50 118.4 67 27 32 17.78 1
66.465.03.070 SDAT40 x MTA3 - 70 138.4 84 47 40 23.825 1.1
66.465.04.095 SDAT40 x MTA4 - 95 163.4 107 74 48 31.267 1.35
67.465.01.045 SDAT50 x MTA1 - 45 146.75 56 22 25 12.065 3
67.465.02.060 SDAT50 x MTA2 - 60 161.75 67 35 32 17.78 3.1
67.465.03.065 SDAT50 x MTA3 - 65 166.75 84 40 40 23.825 3.2
67.465.04.095 SDAT50 x MTA4 - 95 196.75 107 70 48 31.267 3.4
67.465.05.105 SDAT50 x MTA5 - 105 206.75 133 80 63 44.399 3.6
