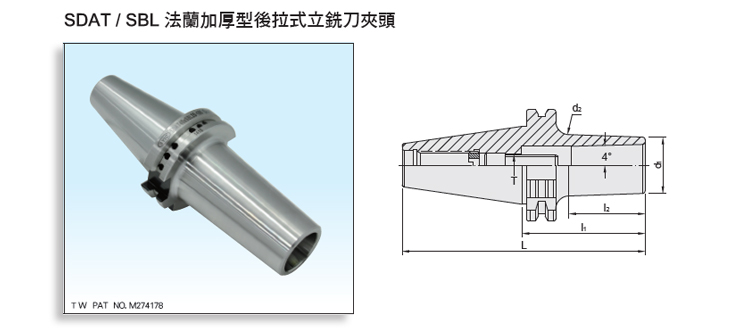

Product Name : DualDRIVE+ SDAT/SBL Slim-Fit Collet Chuck
Product Introduction
  • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - I1Ll2d1d2SIZE RANGETWEIGHT (KGS)
66.648.06.070 SDAT40 x SBL6 - 70 138.4 36 14 17 ør3 ~ ør6 M6 x 1.0P 1
66.648.06.100 SDAT40 x SBL6 - 100 168.4 58 14 20 ør3 ~ ør6 M6 x 1.0P 1.1
66.648.12.070 SDAT40 x SBL12 - 70 138.4 41 26 29 ør3 ~ ør12 M10 x 1.5P 1.2
66.648.12.100 SDAT40 x SBL12 - 100 168.4 71 26 32 ør3 ~ ør12 M10 x 1.5P 1.3
66.648.20.070 SDAT40 x SBL20 - 70 138.4 41 35 38 ør3 ~ ør20 M12 x 1.75P 1.3
66.648.20.100 SDAT40 x SBL20 - 100 168.4 78 35 41 ør3 ~ ør20 M12 x 1.75P 1.4
66.648.25.080 SDAT40 x SBL25 - 80 148.4 58 40 45 ør3 ~ ør25 M16 x 2.0P 1.5
66.648.25.100 SDAT40 x SBL25 - 100 168.4 79 40 46 ør3 ~ ør25 M16 x 2.0P 1.6
67.648.06.070 SDAT50 x SBL6 - 70 171.75 36 14 17 ør3 ~ ør6 M6 x 1.0P 2.8
67.648.06.100 SDAT50 x SBL6 - 100 201.75 66 14 20 ør3 ~ ør6 M6 x 1.0P 2.9
67.648.12.070 SDAT50 x SBL12 - 70 171.75 41 26 29 ør3 ~ ør12 M10 x 1.5P 3
67.648.12.100 SDAT50 x SBL12 - 100 201.75 71 26 32 ør3 ~ ør12 M10 x 1.5P 3.1
67.648.20.070 SDAT50 x SBL20 - 70 171.75 41 35 38 ør3 ~ ør20 M12 x 1.75P 3.2
67.648.20.100 SDAT50 x SBL20 - 100 201.75 71 35 41 ør3 ~ ør20 M12 x 1.75P 3.3
67.648.25.080 SDAT50 x SBL25 - 80 171.75 39 40 43 ør3 ~ ør25 M16 x 2.0P 3.2
67.648.25.100 SDAT50 x SBL25 - 100 201.75 71 40 46 ør3 ~ ør25 M16 x 2.0P 3.4
