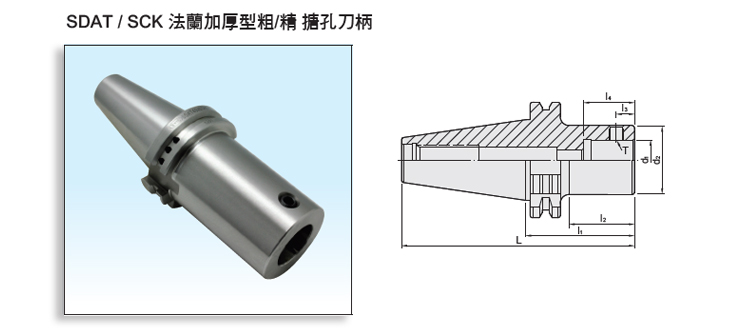

Product Name : DualDRIVE+ SDAT/SCK Boring Head Shank
Product Introduction
  • Can be used with SYIC-17550 Extension Spacer, more convenient for machining..
  • Internal tolerance is H6.



MODEL NO.TYPE - I1LI2I3I4d1d2TWEIGHT (KGS)
66.650.02.080 SDAT40 x SCK2 - 80 148.4 51 6.62 18.5 14 23.5 M5 x 0.8P 1.1
66.650.02.110 SDAT40 x SCK2 - 110 178.4 81 6.62 18.5 14 23.5 M5 x 0.8P 1.15
66.650.03.090 SDAT40 x SCK3 - 90 158.4 66 8 22 18 31 M6 x 1.0P 1.2
66.650.03.125 SDAT40 x SCK3 - 125 193.4 101 8 22 18 31 M6 x 1.0P 1.25
66.650.04.080 SDAT40 x SCK4 - 80 148.4 56 10 24 22 39 M8 x 1.25P 1.3
66.650.04.110 SDAT40 x SCK4 - 110 178.4 86 10 24 22 39 M8 x 1.25P 1.35
66.650.05.095 SDAT40 x SCK5 - 95 163.4 75 13 30 28 50 M10 x 1.5P 1.4
66.650.05.110 SDAT40 x SCK5 - 110 178.4 90 13 30 28 50 M10 x 1.5P 1.45
66.650.06.065 SDAT40 x SCK6 - 65 133.4 45 16 40 36 63 M12 x 1.75P 1.5
66.650.06.095 SDAT40 x SCK6 - 95 163.4 75 16 40 36 63 M12 x 1.75P 1.55
67.650.02.095 SDAT50 x SCK2 - 95 196.75 66 6.62 18.5 14 23.5 M5 x 0.8P 3.2
67.650.02.125 SDAT50 x SCK2 - 125 226.75 96 6.62 18.5 14 23.5 M5 x 0.8P 3.25
67.650.03.125 SDAT50 x SCK3 - 125 226.75 96 8 22 18 31 M6 x 1.0P 3.3
67.650.03.155 SDAT50 x SCK3 - 155 256.75 126 8 22 18 31 M6 x 1.0P 3.35
67.650.04.110 SDAT50 x SCK4 - 110 211.75 81 10 24 22 39 M8 x 1.25P 3.4
67.650.04.125 SDAT50 x SCK4 - 125 226.75 96 10 24 22 39 M8 x 1.25P 3.45
67.650.05.065 SDAT50 x SCK5 - 65 166.75 36 13 30 28 50 M10 x 1.5P 3.5
67.650.05.140 SDAT50 x SCK5 - 140 241.75 111 13 30 28 50 M10 x 1.5P 3.55
67.650.06.140 SDAT50 x SCK6 - 140 241.75 111 16 40 36 63 M12 x 1.75P 3.6
67.650.06.170 SDAT50 x SCK6 - 170 271.75 141 16 40 36 63 M12 x 1.75P 3.65
