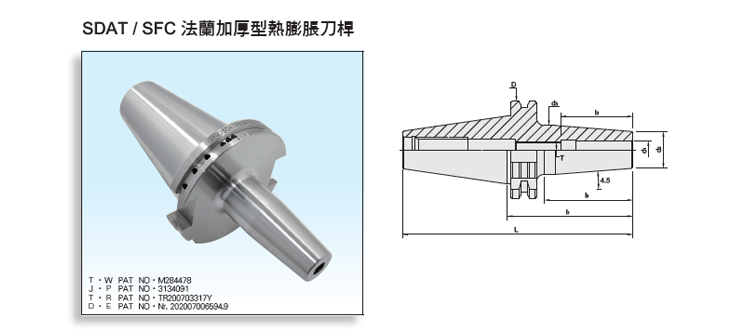

Product Name : DualDRIVE+ SDAT/SFC Shrink Fit Chuck
Product Introduction
  • High rigidity.
  • T.I.R. : within 5 μ.
  • Slim design.
  • Easy handling.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - I1LI2I3d2d3TWEIGHT (KGS)
66.651.03.090 SDAT40 x SFC3 - 90 158.4 18 65 9 - M6 x 1.0P 0.9
66.651.04.090 SDAT40 x SFC4 - 90 158.4 20 65 10 - M6 x 1.0P 0.9
66.651.05.090 SDAT40 x SFC5 - 90 158.4 20 60 16 22 M6 x 1.0P 0.9
66.651.06.090 SDAT40 x SFC6 - 90 158.4   60     M5 x 0.8P 1
66.651.08.090 SDAT40 x SFC8 - 90 158.4 36 60 21 27 M6 x 1.0P 1
66.651.10.090 SDAT40 x SFC10 - 90 158.4 42 60 24 32 M8 x 1.25P 1.1
66.651.12.090 SDAT40 x SFC12 - 90 158.4 47 60 24 32 M10 x 1.5P 1
66.651.14.090 SDAT40 x SFC14 - 90 158.4 47 65 27 34 M10 x 1.5P 1.1
66.651.16.090 SDAT40 x SFC16 - 90 158.4 50 65 27 34 M12 x 1.75P 1.1
66.651.18.100 SDAT40 x SFC18 - 100 168.4 50 79 33 42 M12 x 1.75P 1.2
66.651.20.100 SDAT40 x SFC20 - 100 168.4 52 79 33 42 M16 x 2.0P 1.35
66.651.25.100 SDAT40 x SFC25 - 100 168.4 58 60 44 53 M20 x 2.0P 1.5
66.651.32.100 SDAT40 x SFC32 - 100 168.4 58 60 44 53 M20 x 2.0P 1.5
67.651.03.100 SDAT50 x SFC3 - 100 201.75 18   9 - M6 x 1.0P 2.6
67.651.04.100 SDAT50 x SFC4 - 100 201.75 20 71 10 - M6 x 1.0P 2.6
67.651.05.100 SDAT50 x SFC5 - 100 201.75 20 70 16 22 M6 x 1.0P 2.6
67.651.06.100 SDAT50 x SFC6 - 100 201.75   70 21 27 M5 x 0.8P 2.9
67.651.08.100 SDAT50 x SFC8 - 100 201.75 36 70 21 27 M6 x 1.0P 2.9
67.651.10.100 SDAT50 x SFC10 - 100 201.75 42 70 24 32 M8 x 1.25P 2.9
67.651.12.100 SDAT50 x SFC12 - 100 201.75 47 70 24 32 M10 x 1.5P 3
67.651.14.100 SDAT50 x SFC14 - 100 201.75 47 70 27 34 M10 x 1.5P 3
67.651.16.100 SDAT50 x SFC16 - 100 201.75 50 70 27 34 M12 x 1.75P 3
67.651.18.100 SDAT50 x SFC18 - 100 201.75 50 70 33 42 M12 x 1.75P 3
67.651.20.100 SDAT50 x SFC20 - 100 201.75 52 70 33 42 M16 x 2.0P 3
67.651.25.110 SDAT50 x SFC25 - 110 211.75 58 85 44 53 M20 x 2.0P 3.6
67.651.32.110 SDAT50 x SFC32 - 110 211.75 58 85 44 53 M20 x 2.0P 3.5
