Product Name : DualDRIVE+ SDAT/SKS Collet Chuck
Product Introduction
  • Runout is within 5μ (4D length).
  • SKS Collet taper : 4°, increasing holding power, concentricity and rigidity.
  • Every tool holder reaches revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.

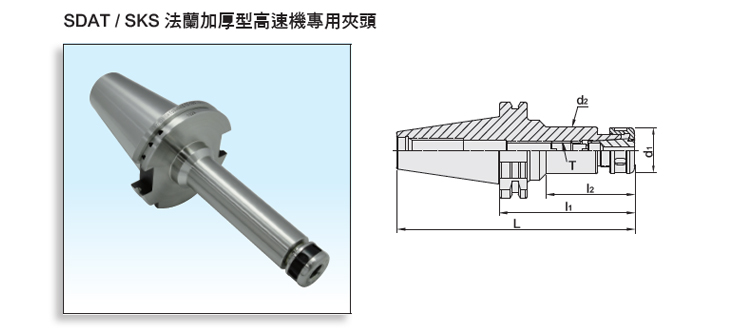

MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
66.658.06.090 SDAT40 x SKS6 - 90 158.4 51 18 18 M8 x 1.25P ør3 ~ ør6 0.6
66.658.06.120 SDAT40 x SKS6 - 120 188.4 81 18 18 M8 x 1.25P ør3 ~ ør6 0.7
66.658.10.090 SDAT40 x SKS10 - 90 158.4 52 30 27.6 M12 x 1.75P ør3 ~ ør10 1.2
66.658.10.120 SDAT40 x SKS10 - 120 188.4 82 30 27.6 M12 x 1.75P ør3 ~ ør10 1.4
66.658.13.090 SDAT40 x SKS13 - 90 158.4 67 35 33 M12 x 1.75P ør3 ~ ør13 1.4
66.658.13.120 SDAT40 x SKS13 - 120 188.4 97 35 33 M12 x 1.75P ør3 ~ ør13 1.6
66.658.16.090 SDAT40 x SKS16 - 90 158.4 65 40 40 M18 x 1.5P ør3 ~ ør16 1.3
66.658.16.120 SDAT40 x SKS16 - 120 188.4 95 40 40 M18 x 1.5P ør3 ~ ør16 1.5
66.658.20.090 SDAT40 x SKS20 - 90 158.4 70 48.5 48.5 M22 x 1.5P ør3 ~ ør20 1.6
66.658.20.120 SDAT40 x SKS20 - 120 188.4 100 48.5 48.5 M22 x 1.5P ør3 ~ ør20 2
66.658.25.090 SDAT40 x SKS25 - 90 158.4 70 55.1 49.85 M28 x 2.0P ør3 ~ ør25.4 1.3
66.658.25.120 SDAT40 x SKS25 - 120 188.4 100 55.1 49.85 M28 x 2.0P ør3 ~ ør25.4 1.5
67.658.06.105 SDAT50 x SKS6 - 105 206.75 64 18 18 M8 x 1.25P ør3 ~ ør6 4.2
67.658.06.165 SDAT50 x SKS6 - 165 266.75 124 18 18 M8 x 1.25P ør3 ~ ør6 4.6
67.658.10.105 SDAT50 x SKS10 - 105 206.75 70 30 30 M12 x 1.75P ør3 ~ ør10 4.2
67.658.10.165 SDAT50 x SKS10 - 165 266.75 130 30 30 M12 x 1.75P ør3 ~ ør10 4.6
67.658.13.105 SDAT50 x SKS13 - 105 206.75 80 35 33 M12 x 1.75P ør3 ~ ør13 4.2
67.658.13.165 SDAT50 x SKS13 - 165 266.75 140 35 33 M12 x 1.75P ør3 ~ ør13 4.6
67.658.16.105 SDAT50 x SKS16 - 105 206.75 75 40 40 M18 x 1.5P ør3 ~ ør16 4.3
67.658.16.165 SDAT50 x SKS16 - 165 266.75 127 40 40 M18 x 1.5P ør3 ~ ør16 4.7
67.658.20.105 SDAT50 x SKS20 - 105 206.75 80 48.5 48.5 M22 x 1.5P ør3 ~ ør20 4.3
67.658.20.165 SDAT50 x SKS20 - 165 266.75 140 48.5 48.5 M22 x 1.5P ør3 ~ ør20 4.7
67.658.25.105 SDAT50 x SKS25 - 105 206.75 80 55.1 55 M28 x 2.0P ør3 ~ ør25.4 5
67.658.25.165 SDAT50 x SKS25 - 165 266.75 140 55.1 55 M28 x 2.0P ør3 ~ ør25.4 5.3
