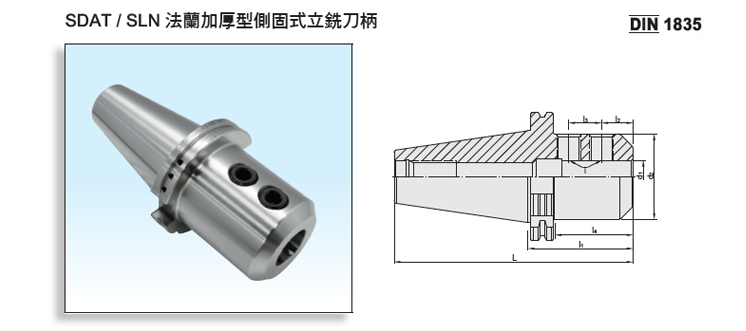

Product Name : DualDRIVE+ SDAT Side Lock End Mill Holder
Product Introduction
  • Internal hole tolerance : H5(DIN-1835-B standard).
  • The tolerance of tool shank diameter is within h6 with the request of revolution.
  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - (d1 - l1)Ll2l3l4d2TWEIGHT (KGS)
66.653.06.050 SDAT40 x SLN6 - 50 118.4 18 - 27 25 M6 x 1.0P 0.85
66.653.08.050 SDAT40 x SLN8 - 50 118.4 18 - 27 28 M8 x 1.25P 1
66.653.10.050 SDAT40 x SLN10 - 50 118.4 20 - 27 35 M10 x 1.5P 1.1
66.653.12.050 SDAT40 x SLN12 - 50 118.4 22.5 - 30 42 M12 x 1.75P 1.15
66.653.16.063 SDAT40 x SLN16 - 63 131.4 24 - 43 45 M14 x 2.0P 1.4
66.653.20.063 SDAT40 x SLN20 - 63 131.4 25 - 43 52 M16 x 2.0P 1.3
66.653.25.100 SDAT40 x SLN25 - 100 168.4 24 25 80 65 M18 x 2.0P 2.4
66.653.32.100 SDAT40 x SLN32 - 100 168.4 24 28 80 72 M20 x 2.0P 2.7
67.653.06.063 SDAT50 x SLN6 - 63 164.75 18 - 33 25 M6 x 1.0P 3.1
67.653.08.063 SDAT50 x SLN8 - 63 164.75 18 - 33 28 M8 x 1.25P 3.1
67.653.10.063 SDAT50 x SLN10 - 63 164.75 20 - 33 35 M10 x 1.5P 3.3
67.653.12.063 SDAT50 x SLN12 - 63 164.75 22.5 - 40 42 M12 x 1.75P 3.5
67.653.16.063 SDAT50 x SLN16 - 63 164.75 24 - 40 48 M14 x 2.0P 3.45
67.653.20.063 SDAT50 x SLN20 - 63 164.75 25 - 40 52 M16 x 2.0P 3.5
67.653.25.080 SDAT50 x SLN25 - 80 181.75 24 25 59 65 M18 x 2.0P 4.2
67.653.32.100 SDAT50 x SLN32 - 100 201.75 24 25 78 72 M20 x 2.0P 5
67.653.40.100 SDAT50 x SLN40 - 100 201.75 30 32 80 90 M20 x 2.0P 5.6
67.653.42.100 SDAT50 x SLN42 - 100 201.75 30 32 80 90 M20 x 2.0P 5.7
67.653.50.125 SDAT50 x SLN50 - 125 226.75 35 35 105 100 M24 x 2.0P 5.9
67.653.63.150 SDAT50 x SLN63 - 150 250.75 40 40 130 125 M20 x 2.0P 6.2
