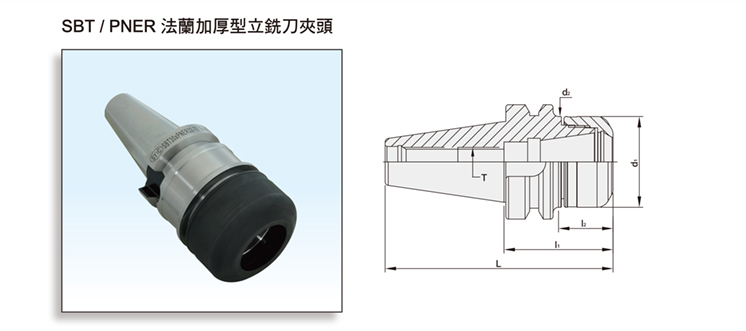

Product Name : DualDRIVE+SBT/PNER COLLET CHUCK
Product Introduction
MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
25.273.16.050 SBT30 x PNER16 - 50 98.4 25 30 26 M10 x 1.5P 3.0 ~ 10 0.8
25.273.20.060 SBT30 x PNER20 - 60 108.4 37 32 32 M12 x 1.75P 3.0 ~ 13 0.8
25.273.25.060 SBT30 x PNER25 - 60 108.4 37 40 40 M16 x 2.0P 3.0 ~ 16 0.9
25.273.32.060 SBT30 x PNER32 - 60 108.4 33 50 50 M16 x 2.0P 3.0 ~ 20 1
26.273.16.070 SBT40 x PNER16 - 70 135.4 40 30 20 M10 x 1.5P 3.0 ~ 10 1.12
26.273.20.070 SBT40 x PNER20 - 70 135.4 40 32 63 M12 x 1.75P 3.0 ~ 13 1.14
26.273.25.070 SBT40 x PNER25 - 70 135.4 40 40 40 M16 x 2.0P 3.0 ~ 16 1.19
26.273.32.070 SBT40 x PNER32 - 70 135.4 40 50 50 M16 x 2.0P 3.0 ~ 20 1.2
26.273.40.070 SBT40 x PNER40 - 70 135.4 40 63 63 M20 x 2.0P 6.0 ~ 26 1.4
27.273.16.070 SBT50 x PNER16 - 70 171.8 29 30 20 M10 x 1.5P 3.0 ~ 10 3
27.273.20.070 SBT50 x PNER20 - 70 171.8 29 32 32 M12 x 1.75P 3.0 ~ 13 3
27.273.25.100 SBT50 x PNER25 - 100 171.8 29 40 40 M16 x 2.0P 3.0 ~ 16 3.93
27.273.32.100 SBT50 x PNER32 - 100 171.8 31 50 50 M16 x 2.0P 3.0 ~ 20 4.12
27.273.40.080 SBT50 x PNER40 - 80 181.8 39 63 63 M20 x 2.0P 6.0 ~ 26 4.2
