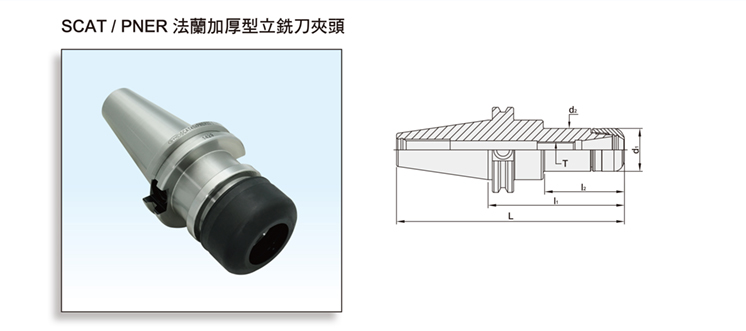

Product Name : DualDRIVE+SCAT/PNER COLLET CHUCK
Product Introduction
MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
43.273.16.250 SCAT40 x PNER16 - 2.5'' 5.187 1.06 1.18 1.18 M10 x 1.5P 0.125 ~ 0.375 1.05
43.273.16.400 SCAT40 x PNER16 - 4'' 6.687 2.43 1.18 1.18 M10 x 1.5P 0.125 ~ 0.375 1.35
43.273.16.500 SCAT40 x PNER16 - 5'' 7.687 3.43 1.18 1.18 M10 x 1.5P 0.125 ~ 0.375 1.65
43.273.20.300 SCAT40 x PNER20 - 3'' 5.684 1.5 1.25 1.25 M12 x 1.75P 0.125 ~ 0.50 1.25
43.273.20.400 SCAT40 x PNER20 - 4'' 6.687 2.5 1.25 1.25 M12 x 1.75P 0.125 ~ 0.50 1.65
43.273.25.400 SCAT40 x PNER25 - 4'' 6.687 2.54 1.57 1.57 M16 x 2.0P 0.125 ~ 0.625 1.85
43.273.32.300 SCAT40 x PNER32 - 3'' 5.684 1.51 1.96 1.96 M16 x 2.0P 0.125 ~ 0.75 1.16
43.273.32.400 SCAT40 x PNER32 - 4'' 6.687 2.52 1.96 1.96 M16 x 2.0P 0.125 ~ 0.75 1.5
43.273.32.500 SCAT40 x PNER32 - 5'' 7.687 3.51 1.96 1.96 M16 x 2.0P 0.125 ~ 0.75 1.75
43.273.32.600 SCAT40 x PNER32 - 6'' 8.687 4.51 1.96 1.96 M16 x 2.0P 0.125 ~ 0.75 2.15
43.273.40.400 SCAT40 x PNER40 - 4'' 6.687 2.62 2.48 2.48 M20 x 2.0P 0.250 ~ 1.00 1.8
44.273.16.400 SCAT50 x PNER16 - 4'' 8 2.03 1.18 1.18 M10 x 1.5P 0.125 ~ 0.375 4.05
44.273.16.600 SCAT50 x PNER16 - 6'' 10 4.03 1.18 1.18 M10 x 1.5P 0.125 ~ 0.375 4.4
44.273.20.400 SCAT50 x PNER20 - 4'' 8 2.14 1.25 1.25 M12 x 1.75P 0.125 ~ 0.50 4.2
44.273.20.600 SCAT50 x PNER20 - 6'' 10 4.14 1.25 1.25 M12 x 1.75P 0.125 ~ 0.50 4.45
44.273.25.400 SCAT50 x PNER25 - 4'' 8 2.38 1.57 1.57 M16 x 2.0P 0.125 ~ 0.625 4.15
44.273.25.600 SCAT50 x PNER25 - 6'' 10 4.38 1.57 1.57 M16 x 2.0P 0.125 ~ 0.625 4.5
44.273.32.400 SCAT50 x PNER32 - 4'' 8 2.42 1.96 1.96 M16 x 2.0P 0.125 ~ 0.75 4.35
44.273.32.600 SCAT50 x PNER32 - 6'' 10 4.42 1.96 1.96 M16 x 2.0P 0.125 ~ 0.75 4.6
44.273.40.400 SCAT50 x PNER40 - 4'' 8 2.48 2.48 2.48 M20 x 2.0P 0.250 ~ 1.00 5.26
44.273.40.600 SCAT50 x PNER40 - 6'' 10 4.65 2.48 2.48 M20 x 2.0P 0.250 ~ 1.00 6.36
