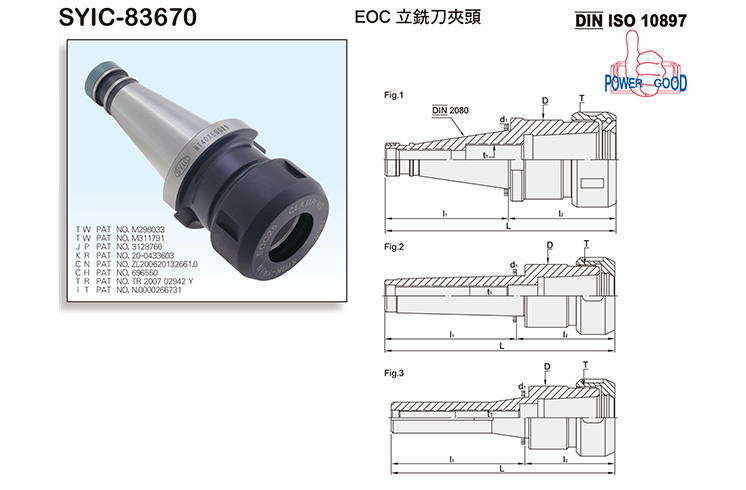

Product Name : EOC Collet Chuck
Product Introduction
TAPERDRAW BAR
MTB 2 3/8" - 16 or M10 x 1.5P
MTB 3 1/2" - 12 or M12 x 1.75P
MTB 4 5/8" - 11 or M16 x 2.0P
MTB 5 1" - 8 or M24 x 3.0P
NT 30 1/2" - 12 or M12 x 1.75P USA 1/2" - 13
NT 40 5/8" - 11 or M16 x 2.0P
NT 50  1" - 8 or M24 x 3.0P
  • The body thread treated with grinding.
  • Including nut and spanner.
  • MTB=Draw Bar Type=DIN 228-A.



MODEL NO.TYPELl1l2Dd1t1TFigWEIGHT (KGS)
SYIC - 83672 MTB2 x EOC25 139 64 75 49 17.78 M6 x 1.0P M48 x 2.0P 2 1.3
SYIC - 83673 MTB3 x EOC25 156 81 75 49 23.825 M12 x 1.75P M48 x 2.0P 2 1.4
SYIC - 83674 MTB4 x EOC25 179 102.5 76.5 49 31.267 M16 x 2.0P M48 x 2.0P 2 1.55
SYIC - 83675 R8 x EOC25 174 104 70 49 31.75 M12 x 1.75P M48 x 2.0P 3 1.55
SYIC - 83676 NT30 x EOC25 140 68.4 71.6 49 31.75 M12 x 1.75P M48 x 2.0P 1 1.35
SYIC - 83677 NT40 x EOC25 160 93.4 66.6 63 44.45 M16 x 2.0P M48 x 2.0P 1 1.65
SYIC - 83678 NT50 x EOC25 197 126.8 70.2 97.5 69.85 M24 x 2.0P M48 x 2.0P 1 3.45
SYIC - 83682 MTB4 x EOC32 187 102.5 84.5 63 31.267 M16 x 2.0P M60 x 2.5P 2 2.25
SYIC - 83683 MTB5 x EOC32 213 128.5 78 63 44.399 M24 x 2.0P M60 x 2.5P 2 2.45
SYIC - 83685 NT40 x EOC32 175 93.4 81.6 63 44.45 M24 x 2.0P M60 x 2.5P 1 2.25
SYIC - 83686 NT50 x EOC32 196.8 126.8 70 97.5 69.85 M24 x 2.0P M60 x 2.5P 1 3.95
