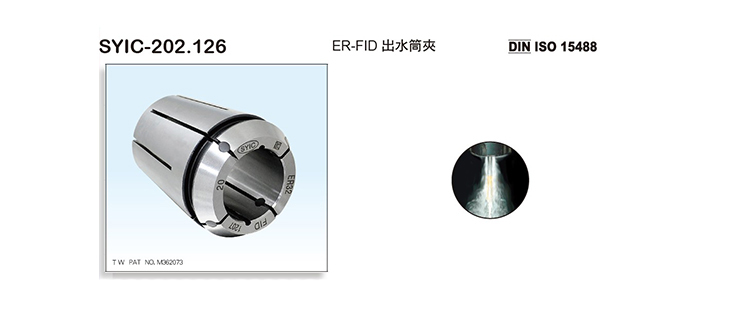

Product Name : ER Coolant Collet (FID TYPE)
Product Introduction
    Feature:
  • The design of coolant groove is good for cooling and metal chips removal, extending tool life.
ER 16 - FIDER 20 - FIDER 25 - FIDER 32 - FIDER 40 - FID
MODEL NO.SIZEMODEL NO.SIZEMODEL NO.SIZEMODEL NO.SIZEMODEL NO.SIZE
202.126.16.03 3 202.126.20.03 3 202.126.25.03 3 202.126.32.03 3
202.126.16.04 4 202.126.20.04 4 202.126.25.04 4 202.126.32.04 4 202.126.40.04 4 4
202.126.16.05 5 202.126.20.05 5 202.126.25.05 5 202.126.32.05 5 202.126.40.05 5 5
202.126.16.06 6 202.126.20.06 6 202.126.25.06 6 202.126.32.06 6 202.126.40.06 6 6
202.126.16.07 7 202.126.20.07 7 202.126.25.07 7 202.126.32.07 7 202.126.40.07 7 7
    202.126.20.08 8 202.126.25.08 8 202.126.32.08 8 202.126.40.08 8 8
    202.126.20.09 9 202.126.25.09 9 202.126.32.09 9 202.126.40.09 9 9
        202.126.25.10 10 202.126.32.10 10 202.126.40.10 10 10
        202.126.25.11 11 202.126.32.11 11 202.126.40.11 11 11
        202.126.25.12 12 202.126.32.12 12 202.126.40.12 12 12
        202.126.25.13 13 202.126.32.13 13 202.126.40.13 13 13
        202.126.25.14 14 202.126.32.14 14 202.126.40.14 14 14
            202.126.32.15 15 202.126.40.15 15 15
            202.126.32.16 16 202.126.40.16 16 16
            202.126.32.17 17 202.126.40.17 17 17
            202.126.32.18 18 202.126.40.18 18 18
            202.126.32.19 19 202.126.40.19 19 19
            202.126.32.20 20 202.126.40.20 20 20
                202.126.40.21 21 21
                202.126.40.22 22 22
                202.126.40.23 23 23
                202.126.40.24 24 24
                202.126.40.25 25 25
                202.126.40.26 26 26
