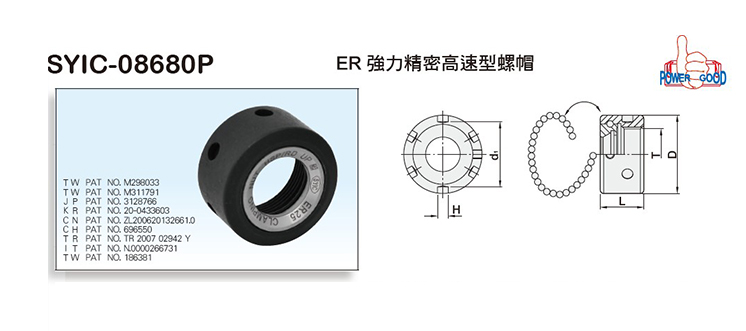

Product Name : ER High Speed Precision Nut
Product Introduction
  • Steel: SNCM - 21
  • HRC: 52°
  • Applied for SYIC-04600 ER spanner.
  • The external diameter is ground precisely, decreasing unbalance.
  • Balanced to G2.5 15,000 rpm.
  • According to ISO1941-1 standard, examined by a balancing machine.
  • Can be ordered separately.
  • Higher precision and stability if matching ER Collet-UP class.

SKS Collet

MODEL NO.TYPEDd1HLTWEIGHT (KGS)
SYIC - 08680P ER 16 - HSP 32 26 5 18 M22 x 1.5P 0.008
SYIC - 08681P ER 20 - HSP 36 30 5 20 M22 x 1.5P 0.1
SYIC - 08682P ER 25 - HSP 42 36 4.4 22.5 M32 x 1.5P 0.1
SYIC - 08684P ER 32 - HSP 50 44 4.4 25 M40 x 1.5P 0.15
SYIC - 08686P ER 40 - HSP 63 57 4.4 27.5 M50 x 1.5P 0.27
