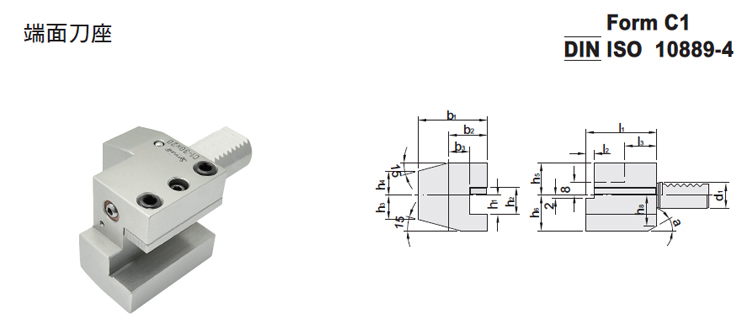

Product Name : Face Turning Tool Holder
Product Introduction
  • Axial-right handed.
  • Short tool holder.
  • With coolant hole.



MODEL NO.TYPE d1 x h1d1b1b2b3h1h2h3h4h5h6h8l1l2l3a
150.C1.30.20 30 x 20 30 70 35 17 20 29 26 22 28 38 30 70 10 30 25
150.C1.40.25 40 x 25 40 85 42.5 21 25 34 35 30 32.5 48 - 85 12.5 30 -
150.C1.50.32 50 x 32 50 100 50 26 32 41 42 35 35 60 - 100 16 40 -
