Product Name : Fixed Block(One Piece Type)
Product Introduction
  • Fixed block must be purchased according to the type of fixed pin.
  • Fixed block can be installed on the spindle but must be fixed on the machine well. Otherwise, it is a threat for ATC tool change arm. Installation way changes with different machines. Please confirm with your machine supplier about correct installation way.
  • Customization is acceptable. Please provide the related sizes by filling out the form in page 23.

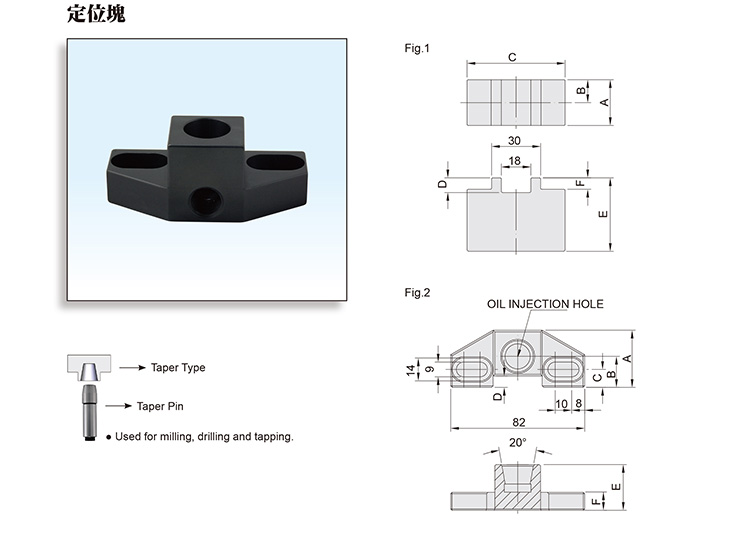

MODEL NO.TYPENAMEABCDEFFig.WEIGHT (KGS)
350.673.40 SFT - 40 #40 FIXED BLOCK (Taper Type) 40 18.5 10 5 30 13 2 0.3
350.673.50 SFT - 50 #50 FIXED BLOCK (Taper Type) 34 19 11 7 35 15 2 0.32
