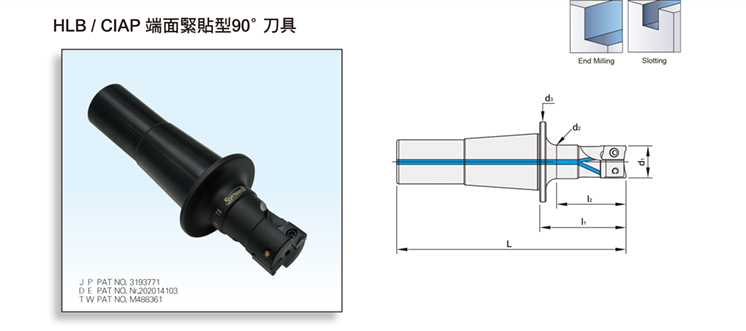

Product Name : HLB/CIAP FACE CONTACT TYPE 90° END MILL CUTTER
Product Introduction
  • Inserts are optional accessories. Needs to be purchased additionally.



MODEL NO.TYPEd1d2d3Ll1l2TEETHINSERT
261.243C.10.040 HLB12xCIAP10-40-1T 10 12 31.75 95 40 32 1 AP..1003
261.243C.12.040 HLB12xCIAP12-40-1T 12 12 31.75 95 40 32 1 AP..1003
261.244C.16.040 HLB12xCIAP16-40-2T 16 16 31.75 95 40 32 2 AP..1003
262.243C.10.040 HLB20xCIAP10-40-1T 10 12 38.1 108 40 32 1 AP..1003
262.243C.12.040 HLB20xCIAP12-40-1T 12 12 38.1 108 40 32 1 AP..1003
262.244C.16.040 HLB20xCIAP16-40-2T 16 16 38.1 108 40 32 2 AP..1003
262.244C.20.040 HLB20xCIAP20-40-2T 20 20 38.1 108 40 32 2 AP..1003
262.245C.20.040 HLB20xCIAP20-40-3T 20 20 38.1 108 40 32 3 AP..1003
262.244C.25.040 HLB20xCIAP25-40-2T 25 25 38.1 108 40 32 2 AP..1003
262.245C.25.040 HLB20xCIAP25-40-3T 25 25 38.1 108 40 32 3 AP..1003
262.246C.25.040 HLB20xCIAP25-40-4T 25 25 38.1 108 40 32 4 AP..1003
262.244C.32.040 HLB20xCIAP32-40-2T 32 30.8 38.1 108 40 35 2 AP..1604
262.245C.32.040 HLB20xCIAP32-40-3T 32 30.8 38.1 108 40 35 3 AP..1604
263.243C.10.040 HLB25xCIAP10-40-1T 10 12 44.5 118 40 32 1 AP..1003
263.243C.12.040 HLB25xCIAP12-40-1T 12 12 44.5 118 40 32 1 AP..1003
263.244C.16.040 HLB25xCIAP16-40-2T 16 16 44.5 118 40 32 2 AP..1003
263.244C.20.040 HLB25xCIAP20-40-2T 20 20 44.5 118 40 32 2 AP..1003
263.245C.20.040 HLB25xCIAP20-40-3T 20 20 44.5 118 40 32 3 AP..1003
263.244C.25.040 HLB25xCIAP25-40-2T 25 25 44.5 118 40 34 2 AP..1003
263.245C.25.040 HLB25xCIAP25-40-3T 25 25 44.5 118 40 34 3 AP..1003
263.246C.25.040 HLB25xCIAP25-40-4T 25 25 44.5 118 40 34 4 AP..1003
263.244C.32.040 HLB25xCIAP32-40-2T 32 30.8 44.5 118 40 34 2 AP..1604
263.245C.32.040 HLB25xCIAP32-40-3T 32 30.8 44.5 118 40 34 3 AP..1604



ACCESSORIES:

INSERTSCREWWRENCH
AP..1003 M2.5-6.45-3.7-60 T8
AP..1604 M4-10-5.7-60 T15
